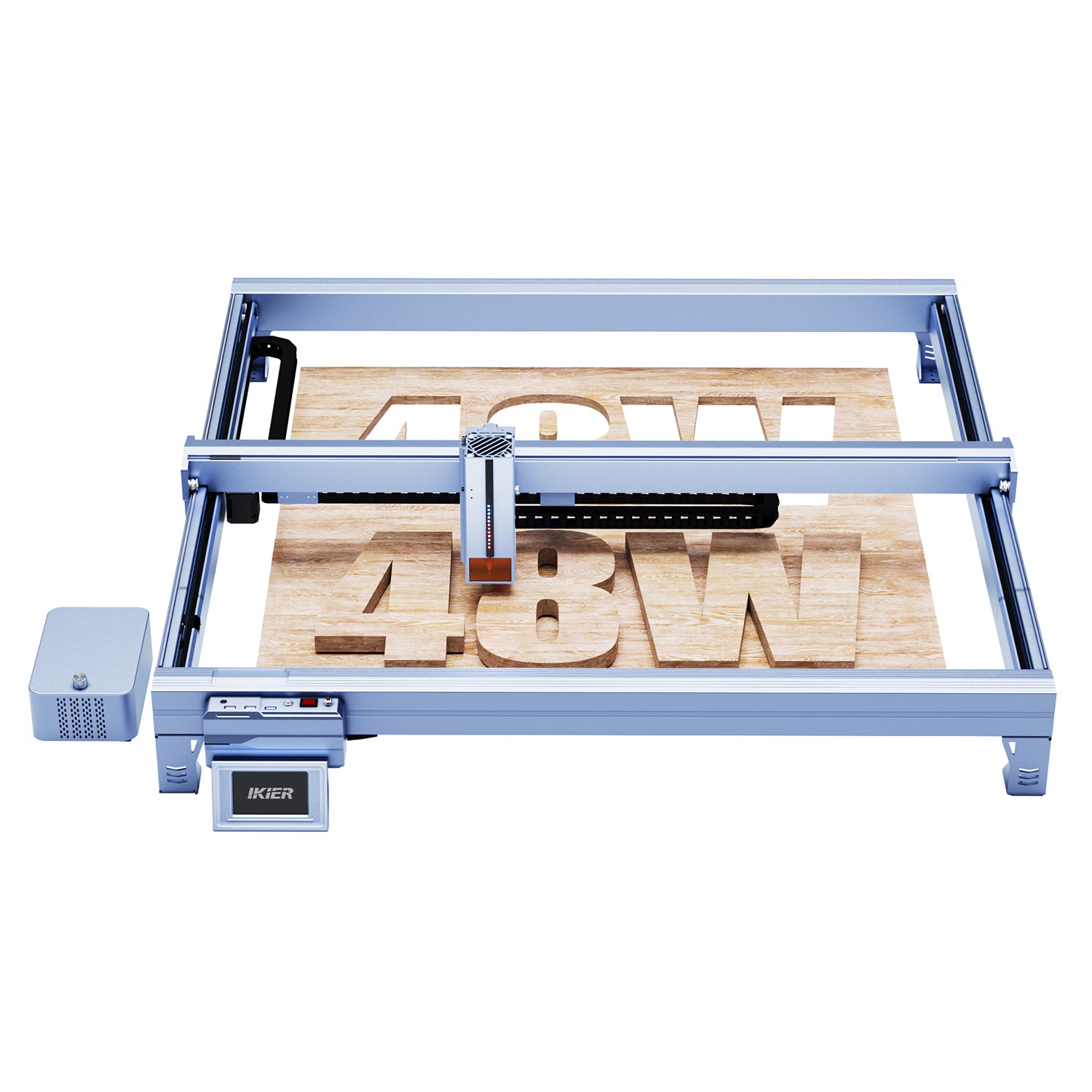

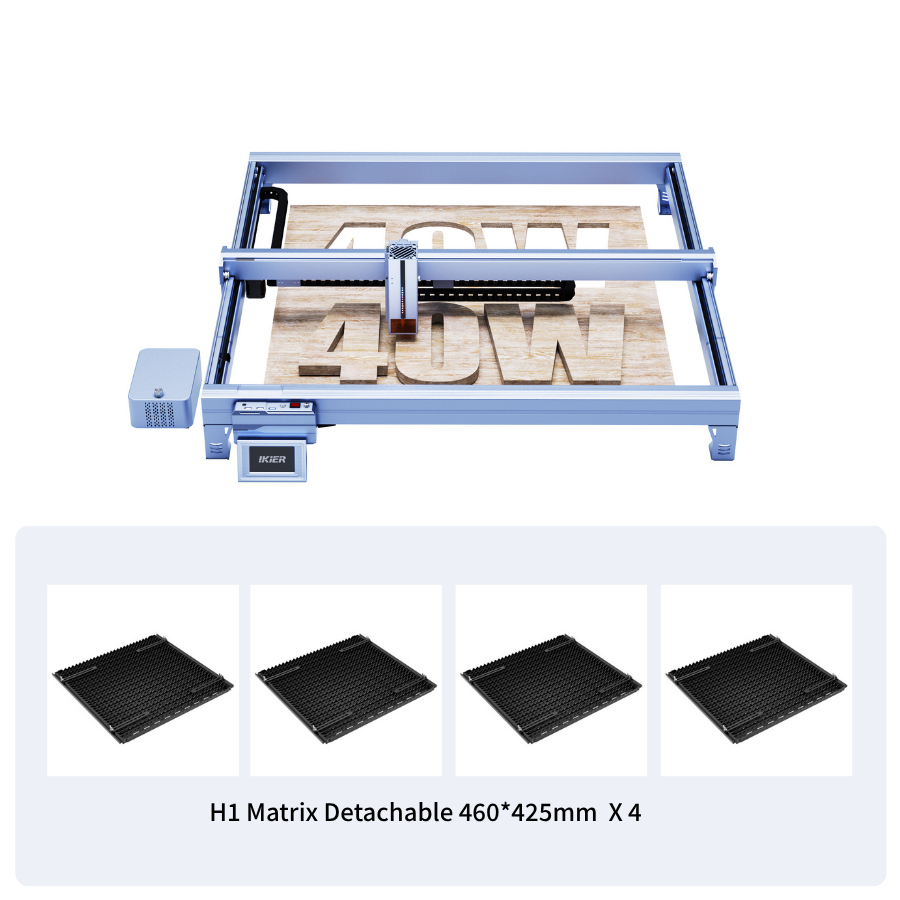

iKier K40 Max Laser Engraver
iKier K40 Max Laser Engraver
1-Year Warranty
- 30-Day Price Guarantee
FAST & FREE SHIPPING
FAST & FREE SHIPPING
Laser engraver ship directly from iKier overseas local warehouses in US & EU, so you’ll get your machine much sooner with no shipping fees.
HOW TO USE
HOW TO USE
WARRANTY POLICY
WARRANTY POLICY
Product Details

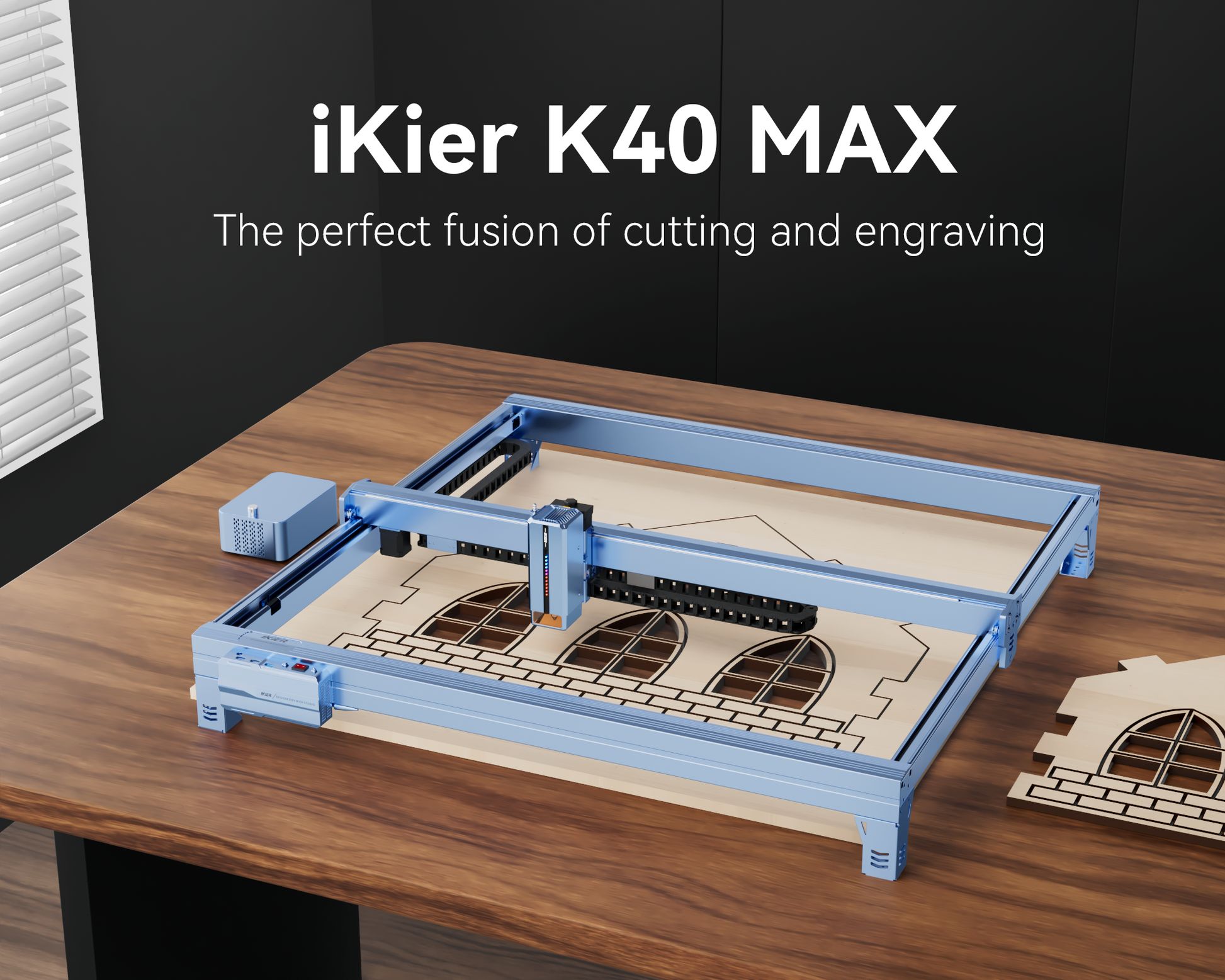

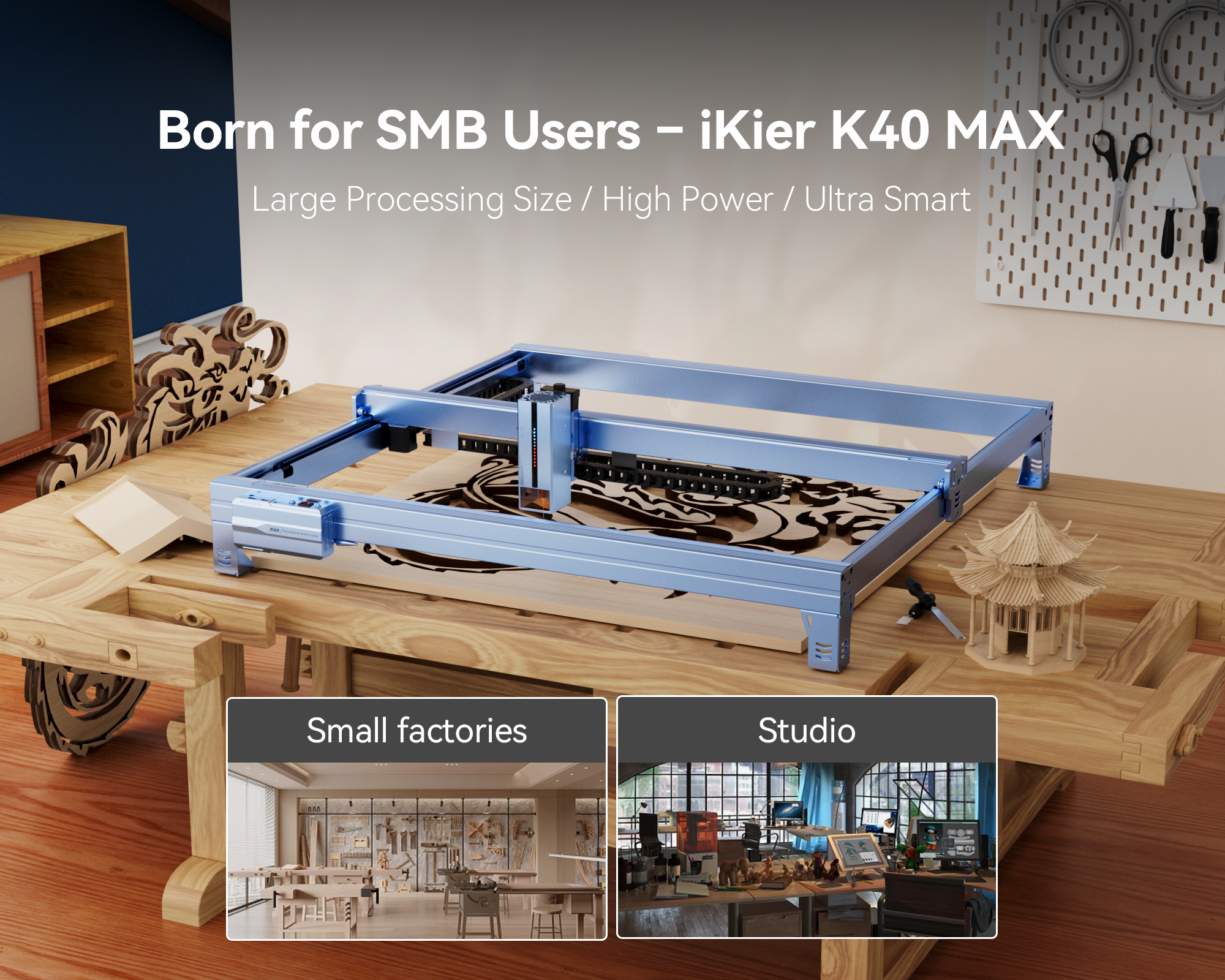

K40 Max — Expansive Size, Exceptional Efficiency, Ultra Precision. Smart and Secure, Empowering Your Creativity and Productivity!
Features:

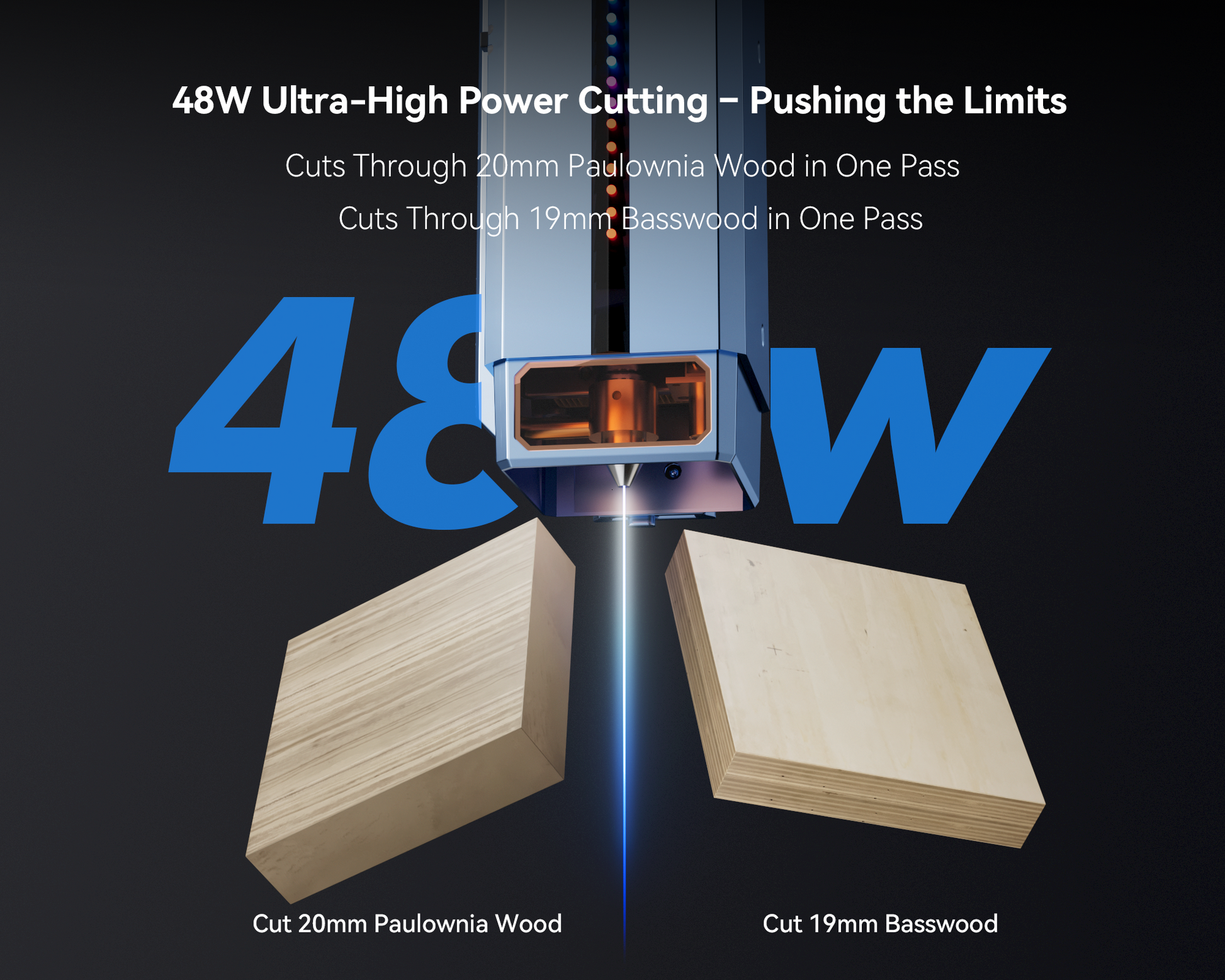

1. High-Efficiency Cutting: Easily cuts through 20mm paulownia wood and 19mm basswood in 40W mode, meeting common medium-thick board requirements

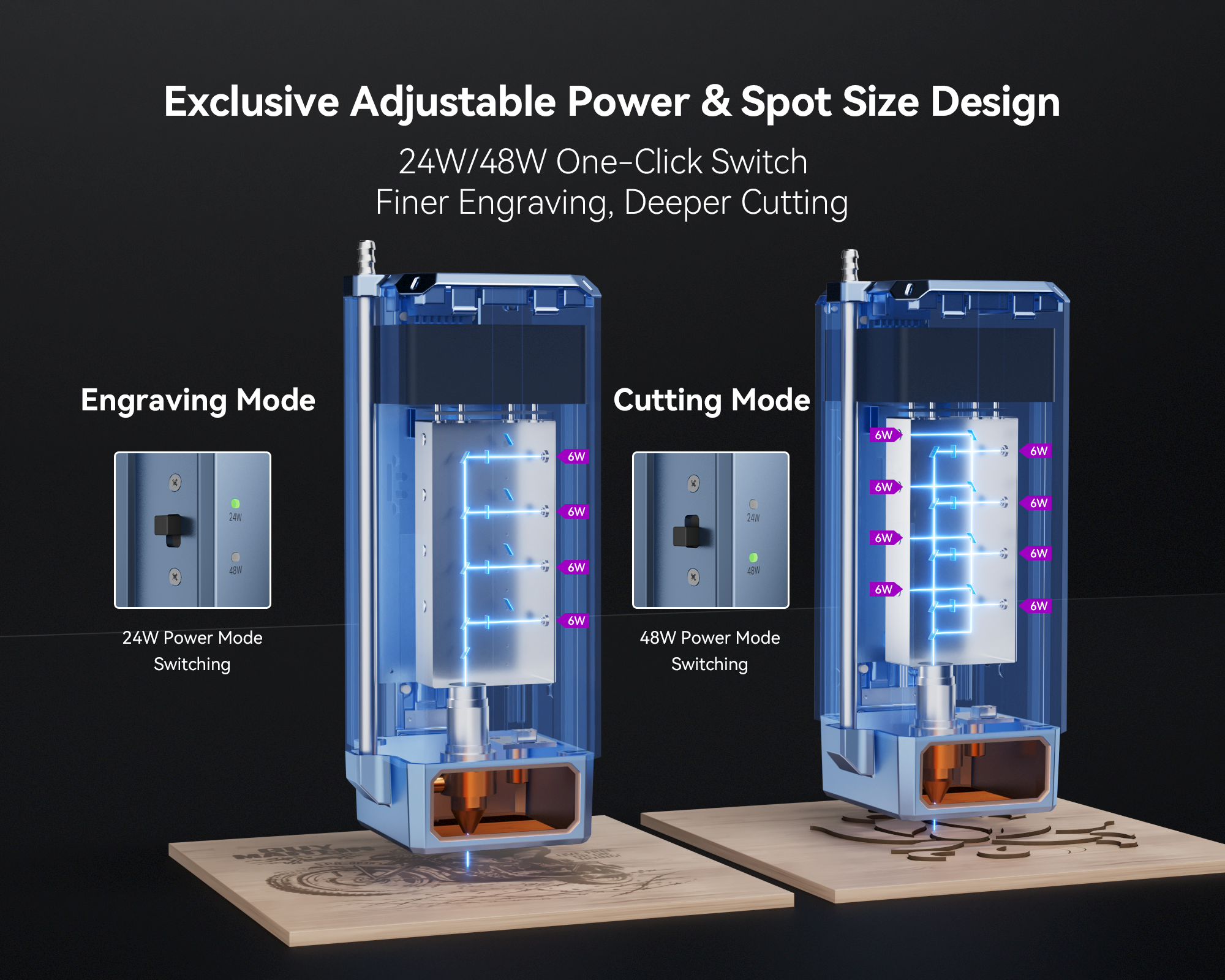

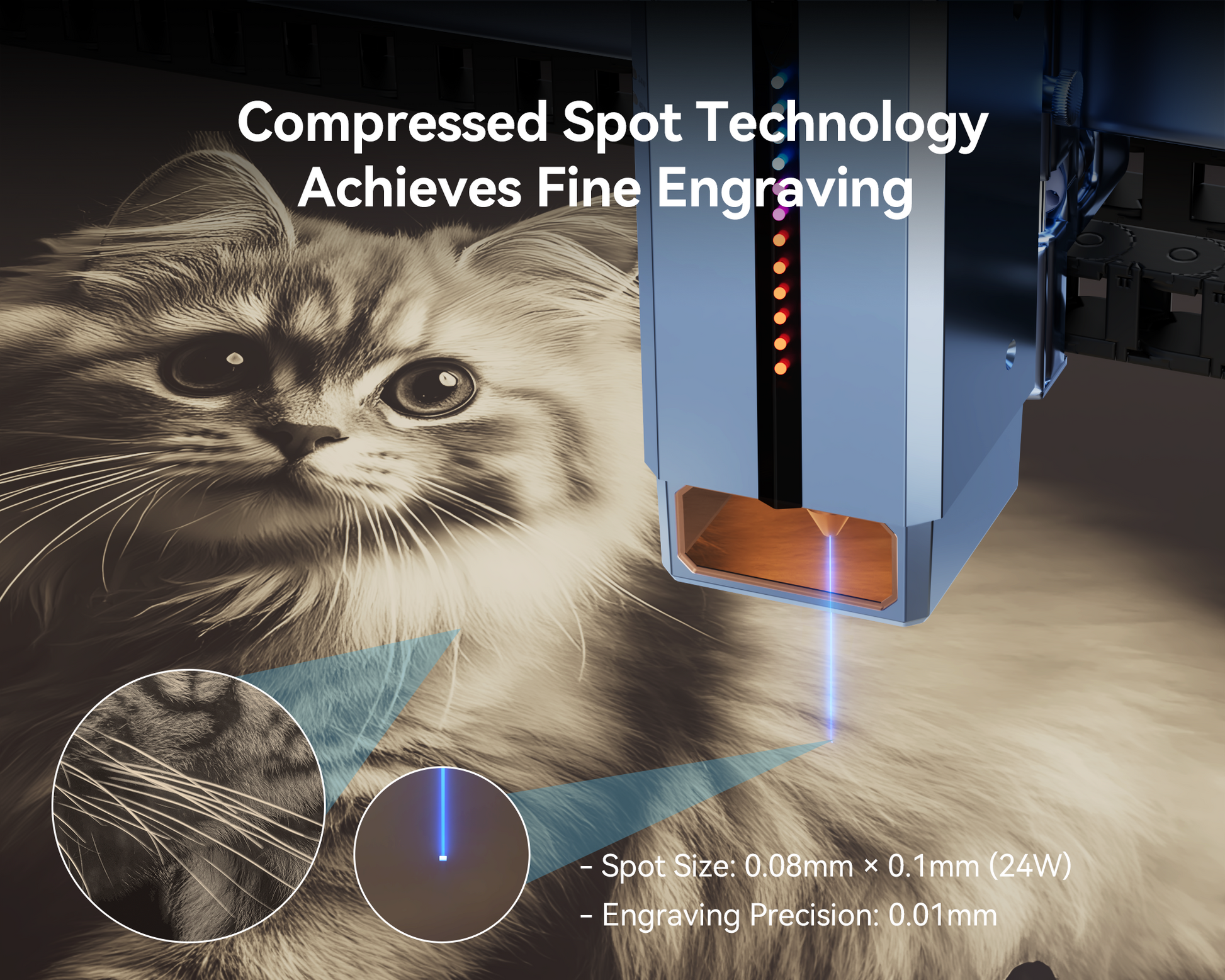

2. Precision Engraving Excellence: 20W mode with 0.08×0.1mm compressed light spot accurately renders complex patterns and fine text

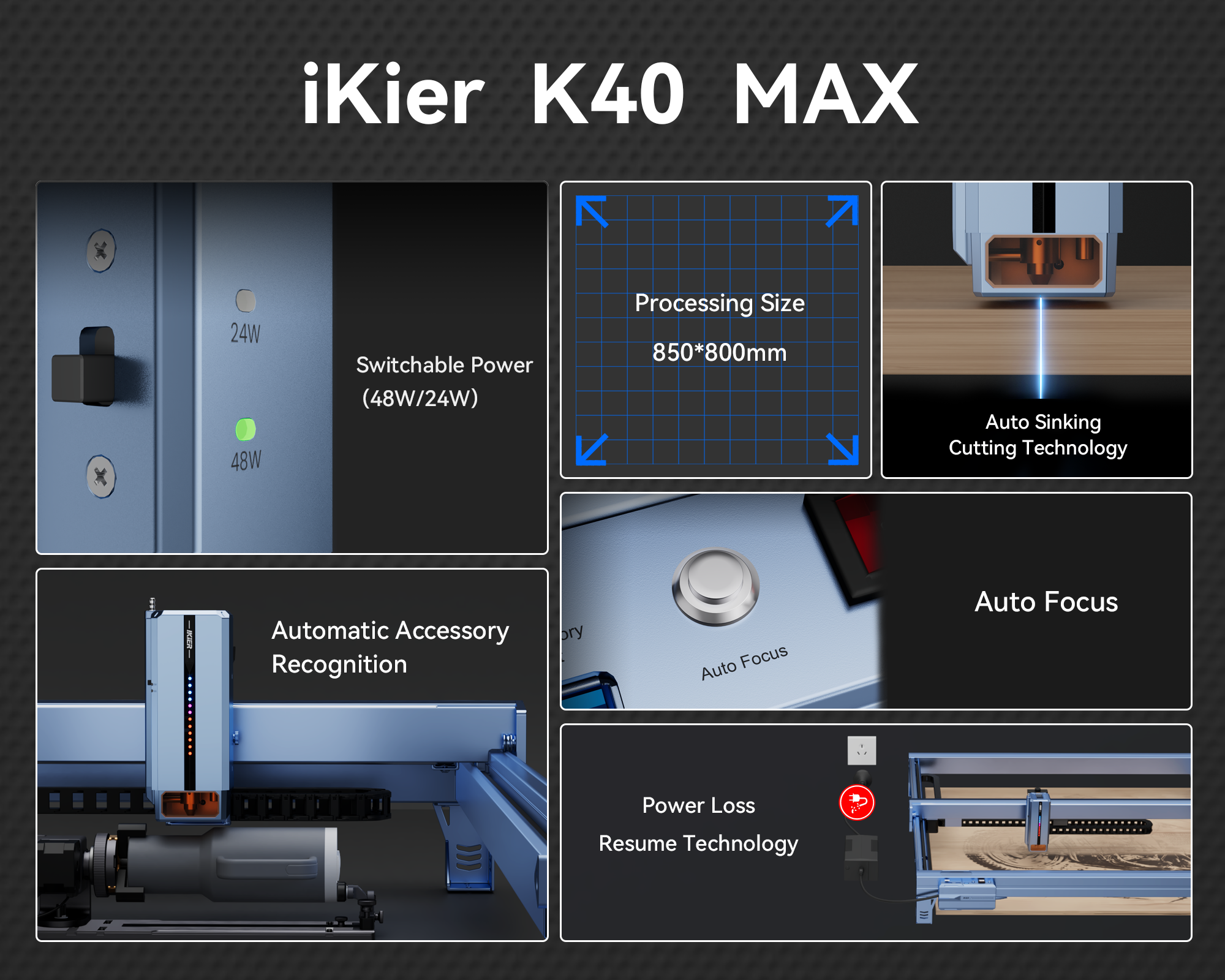

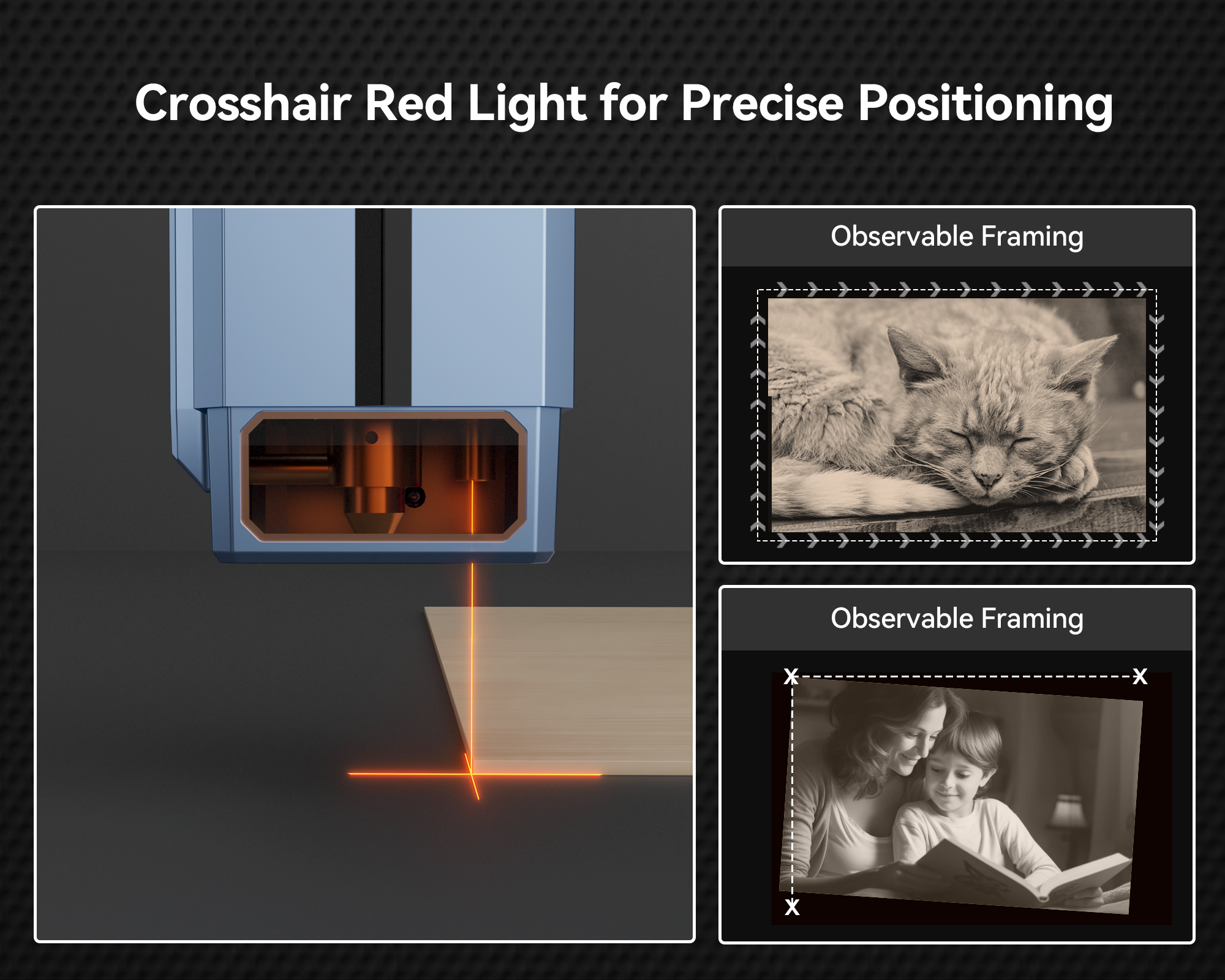

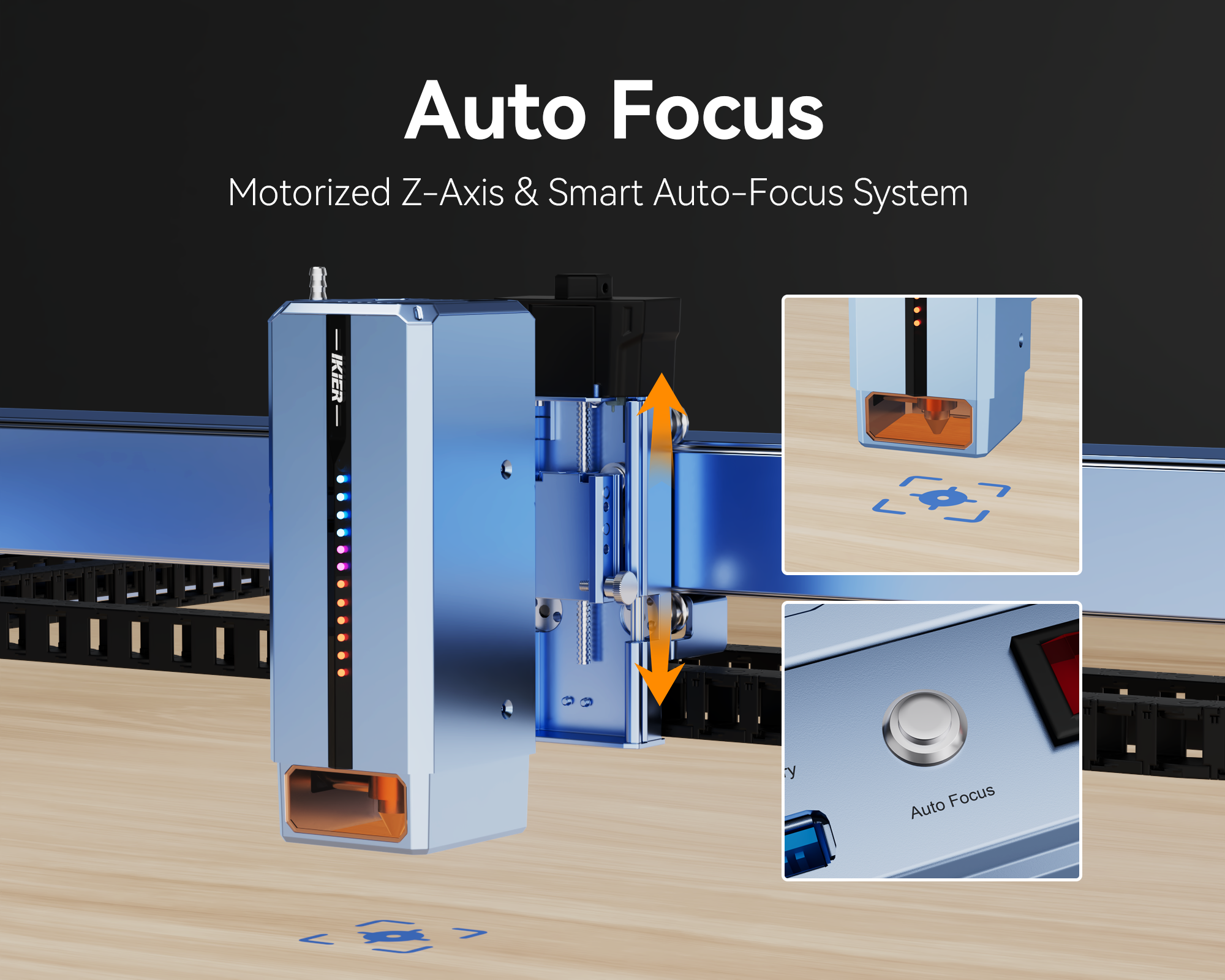

3. Full Electric Z-axis & Red Cross Laser: One-click auto-focus instantly locks focal point, eliminating manual adjustment

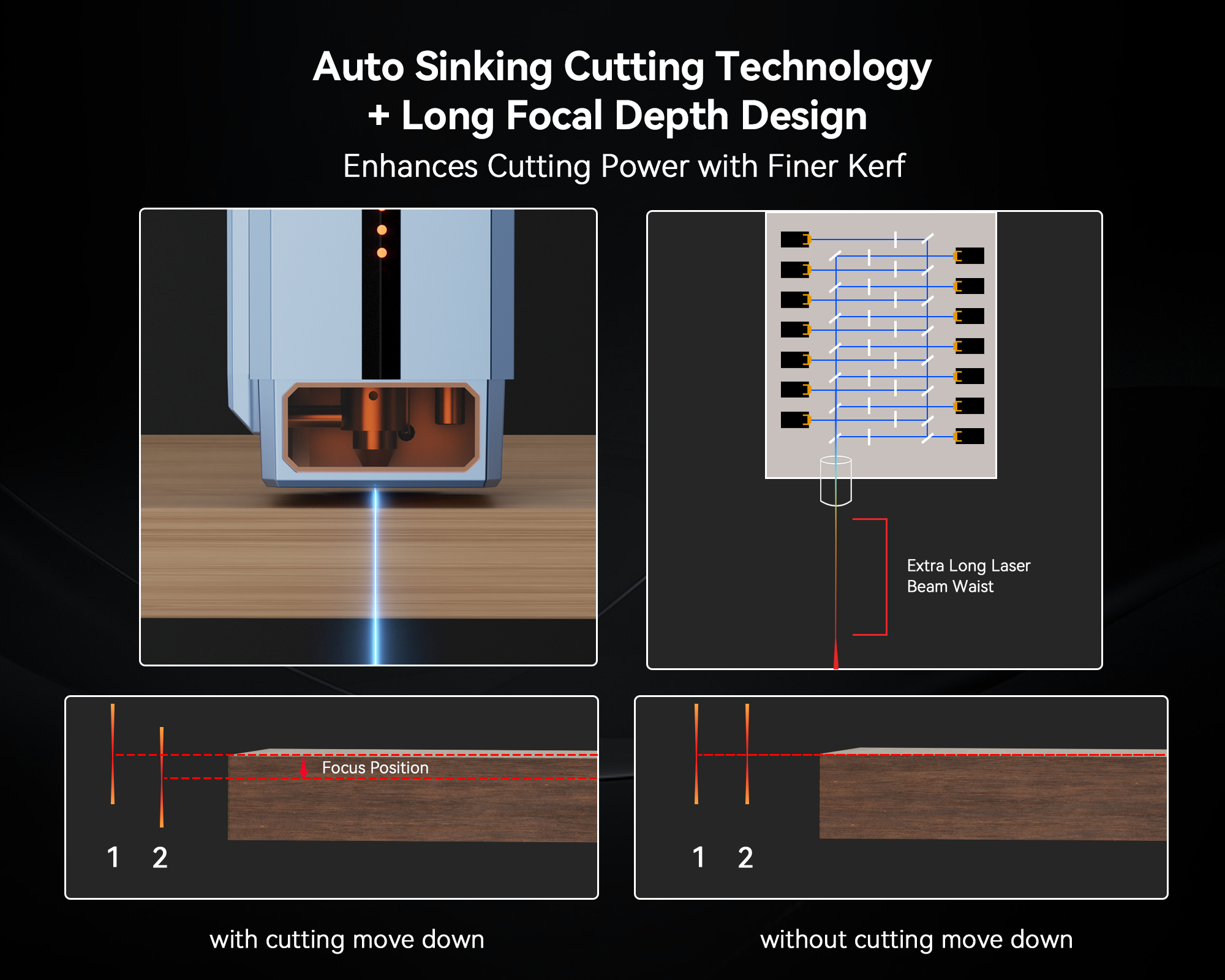

4. Sinking Cutting Tech + Long Focal Depth: Auto Sinking Cutting prevents secondary polishing, boosting production efficiency

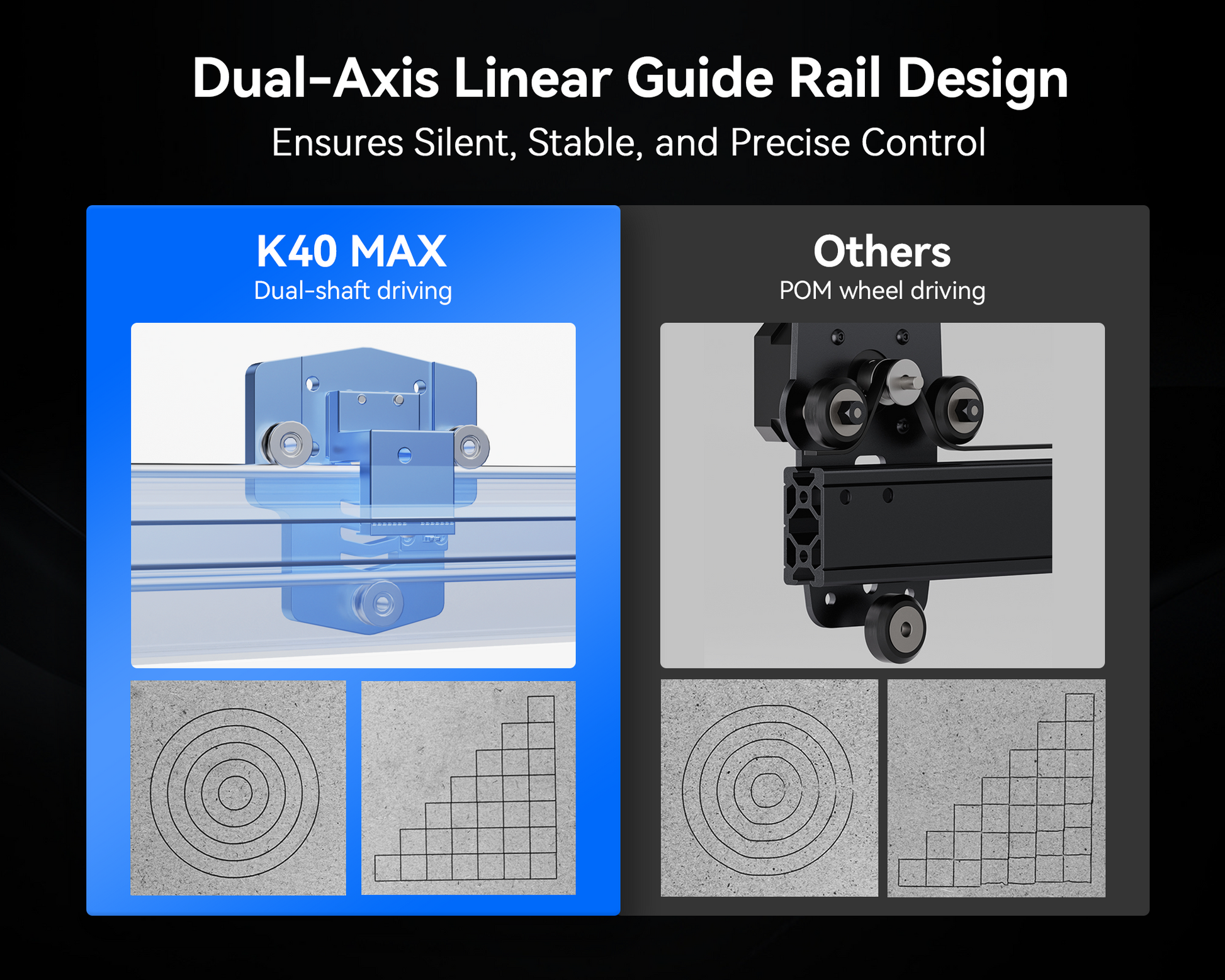

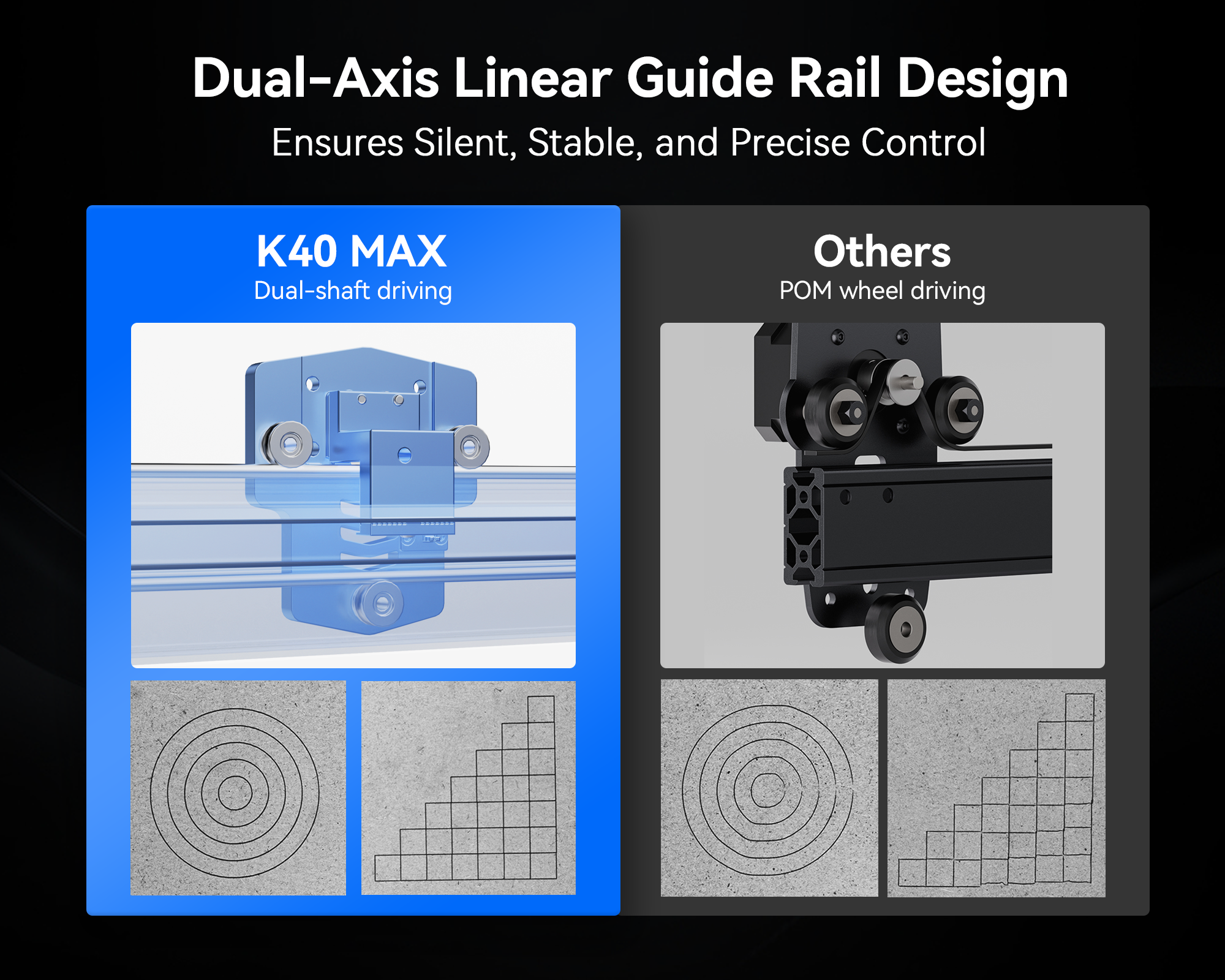

5. Dual Linear Guide Rails: Silent operation with high-precision durability for prolonged heavy-load processing

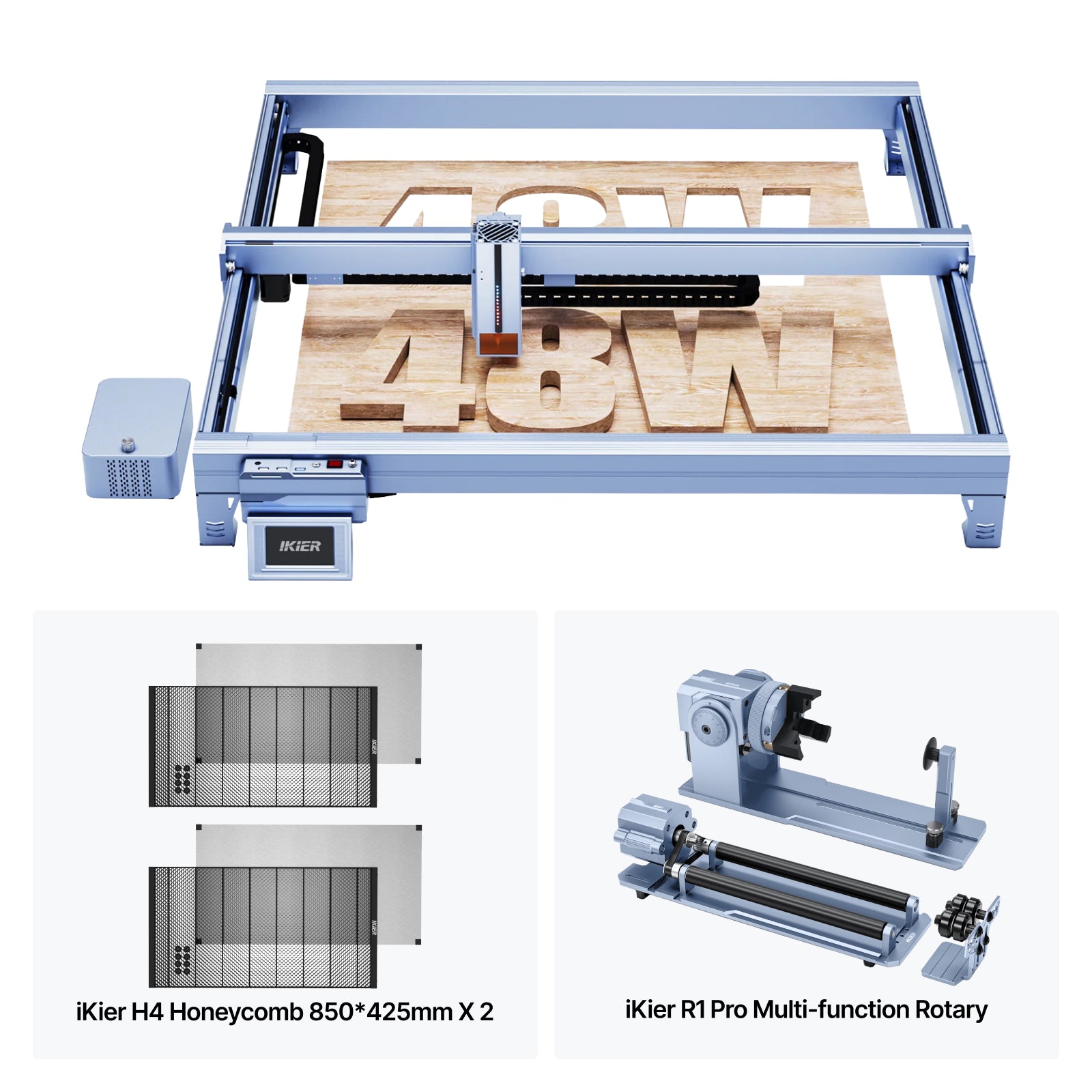

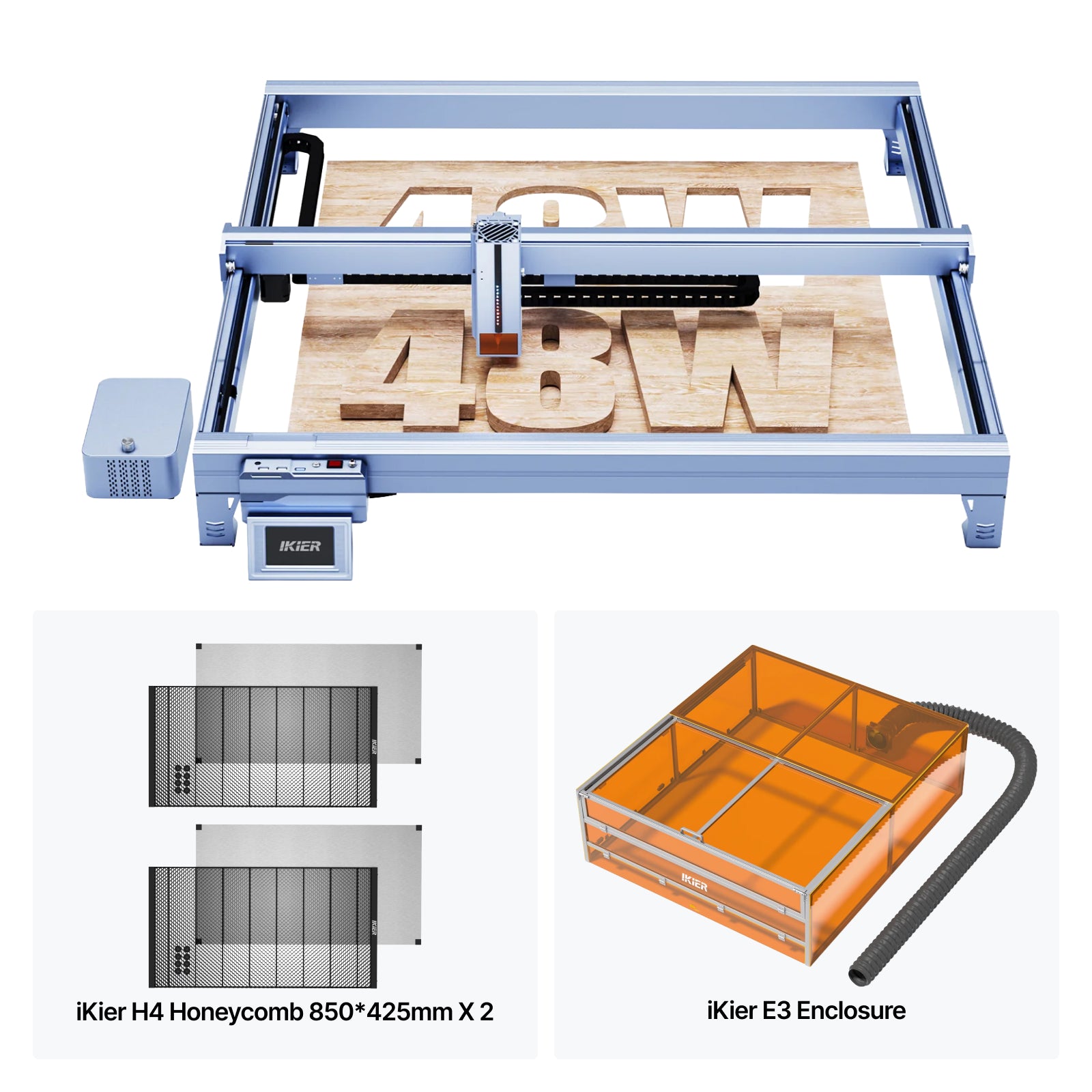

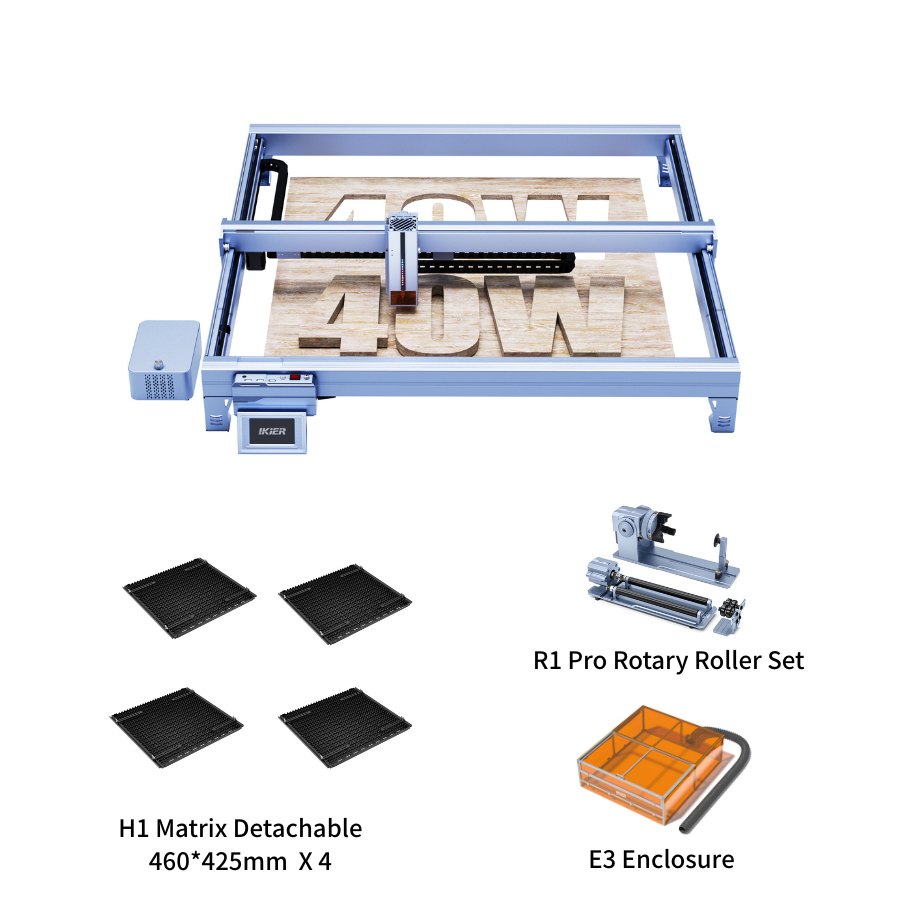

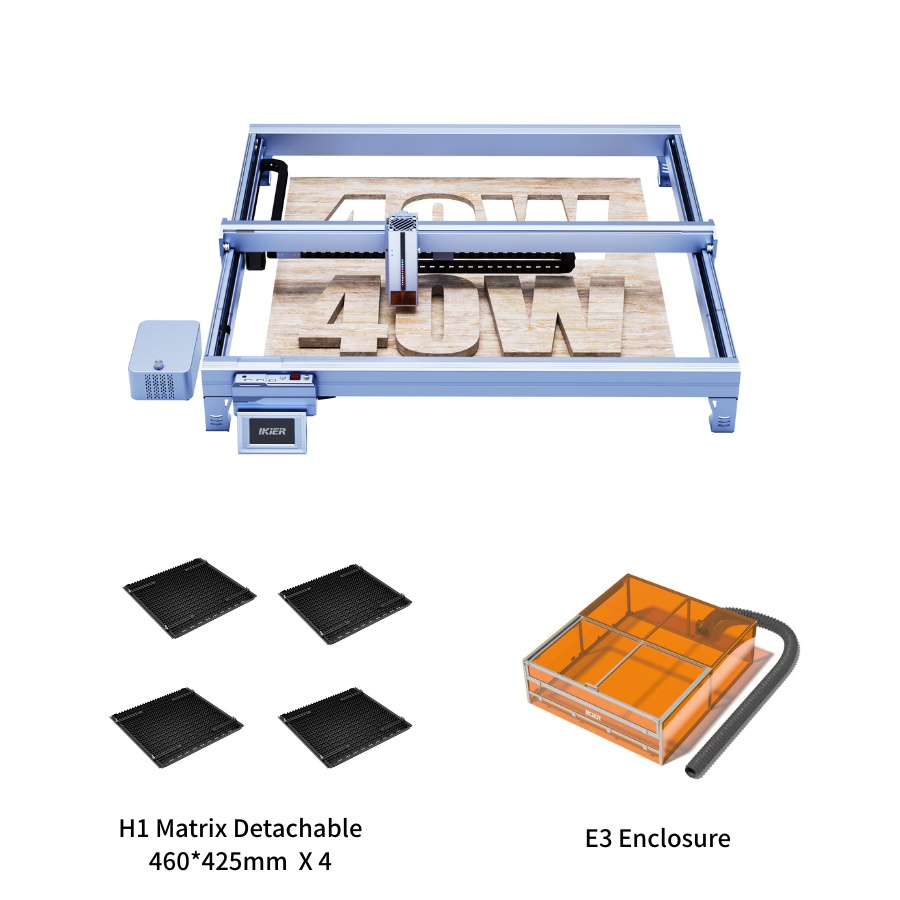

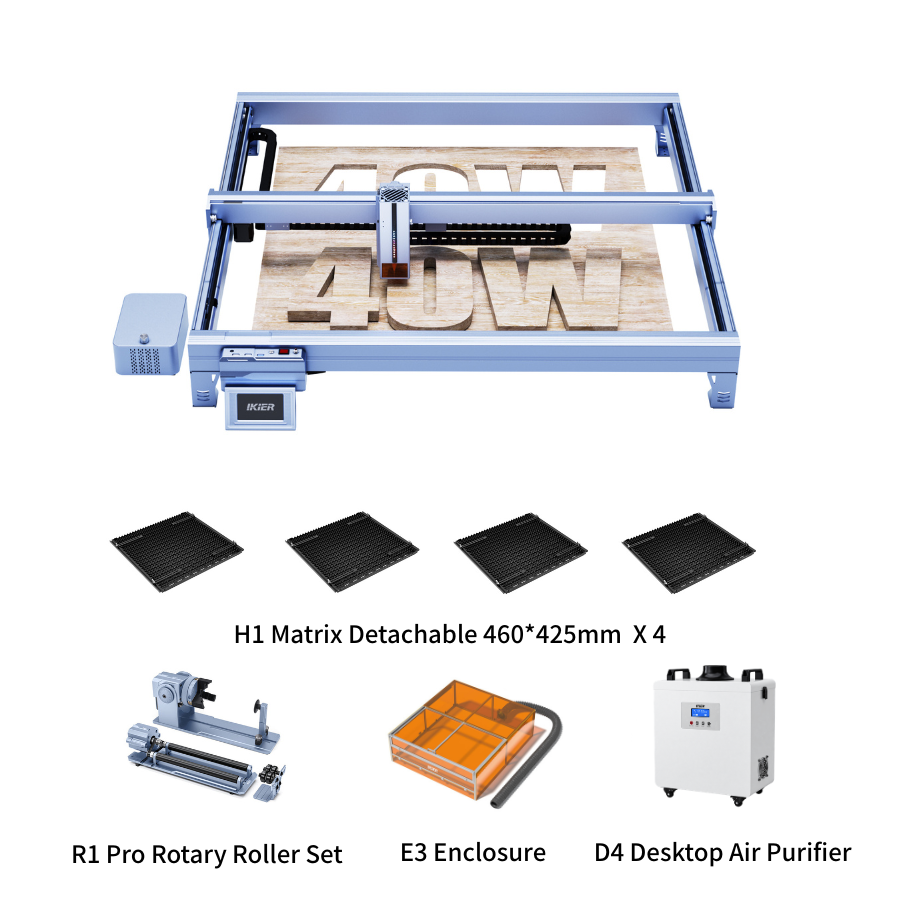

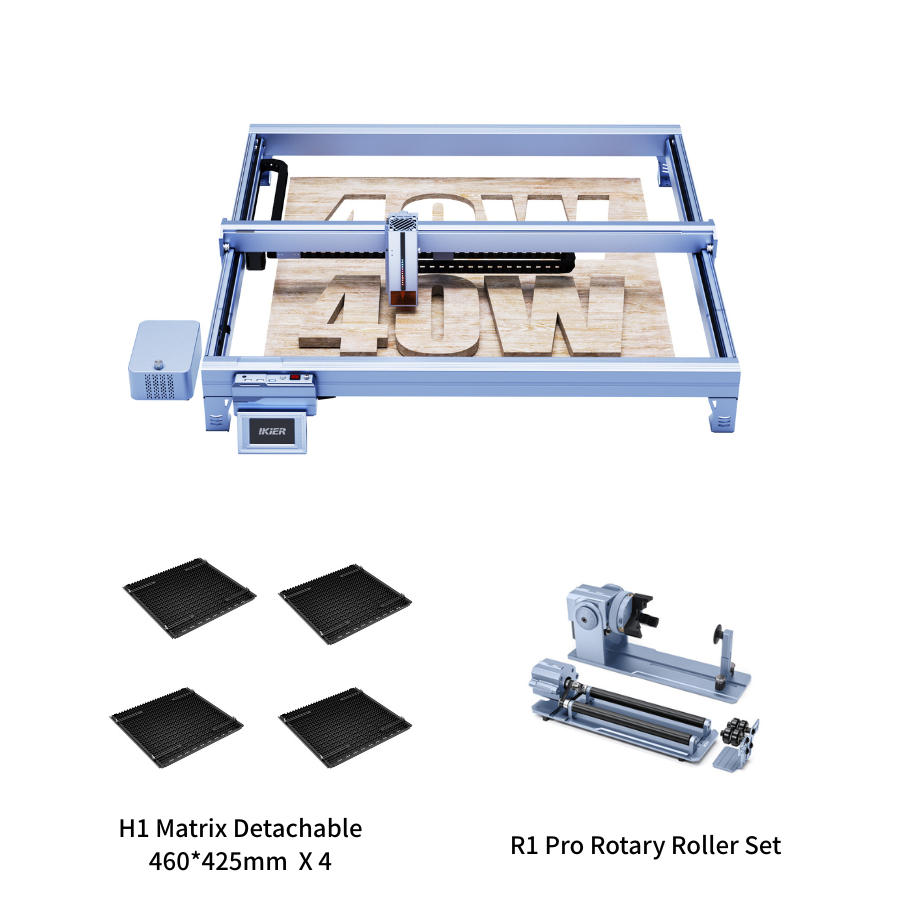

6. Multi-Accessory Compatibility: Optional rollers, rotary attachments, and auxiliary platforms for cylindrical/irregular workpieces

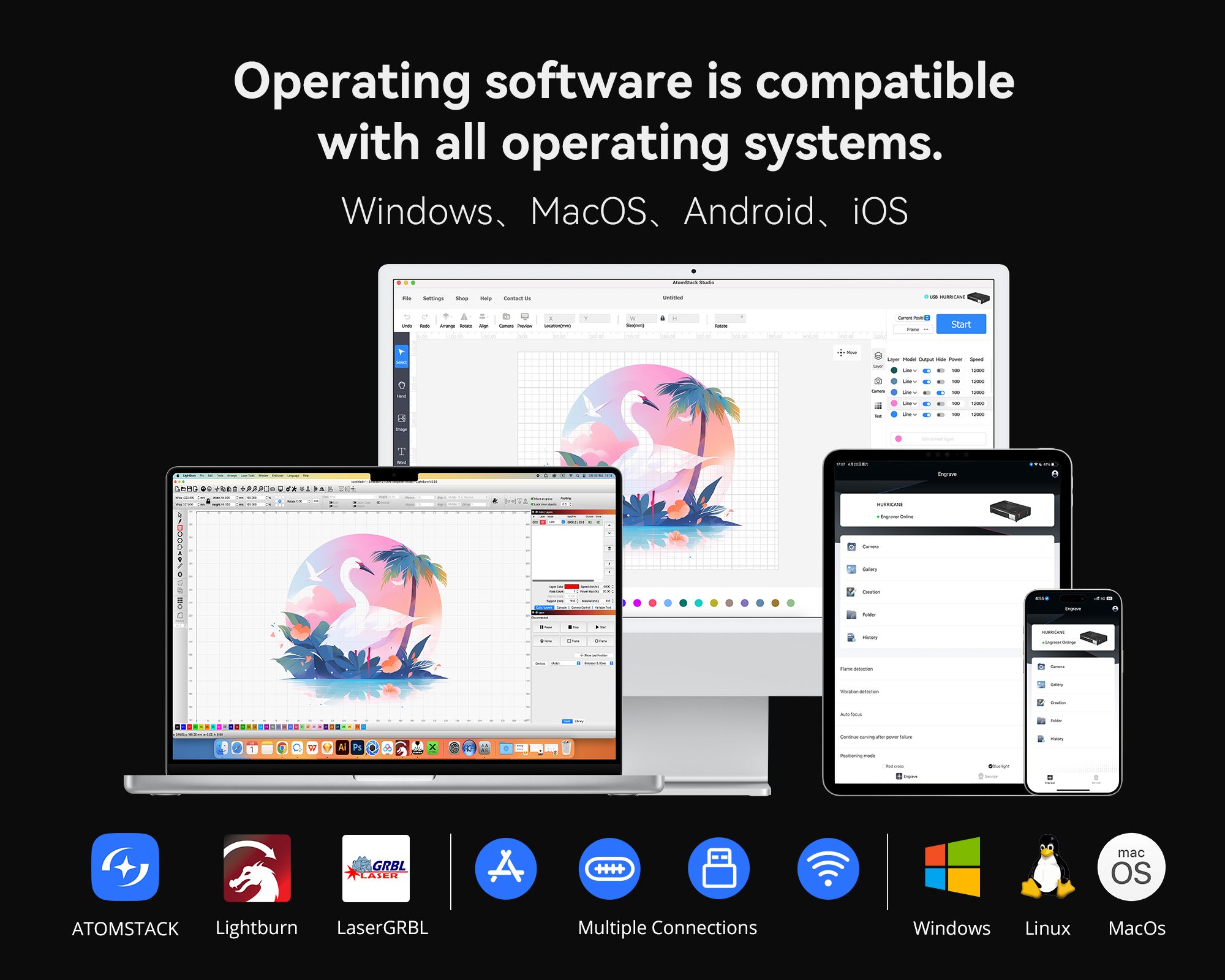

7. Cross-Platform Support: Windows/macOS/Android/iOS compatible with USB/Wi-Fi/TF card connectivity

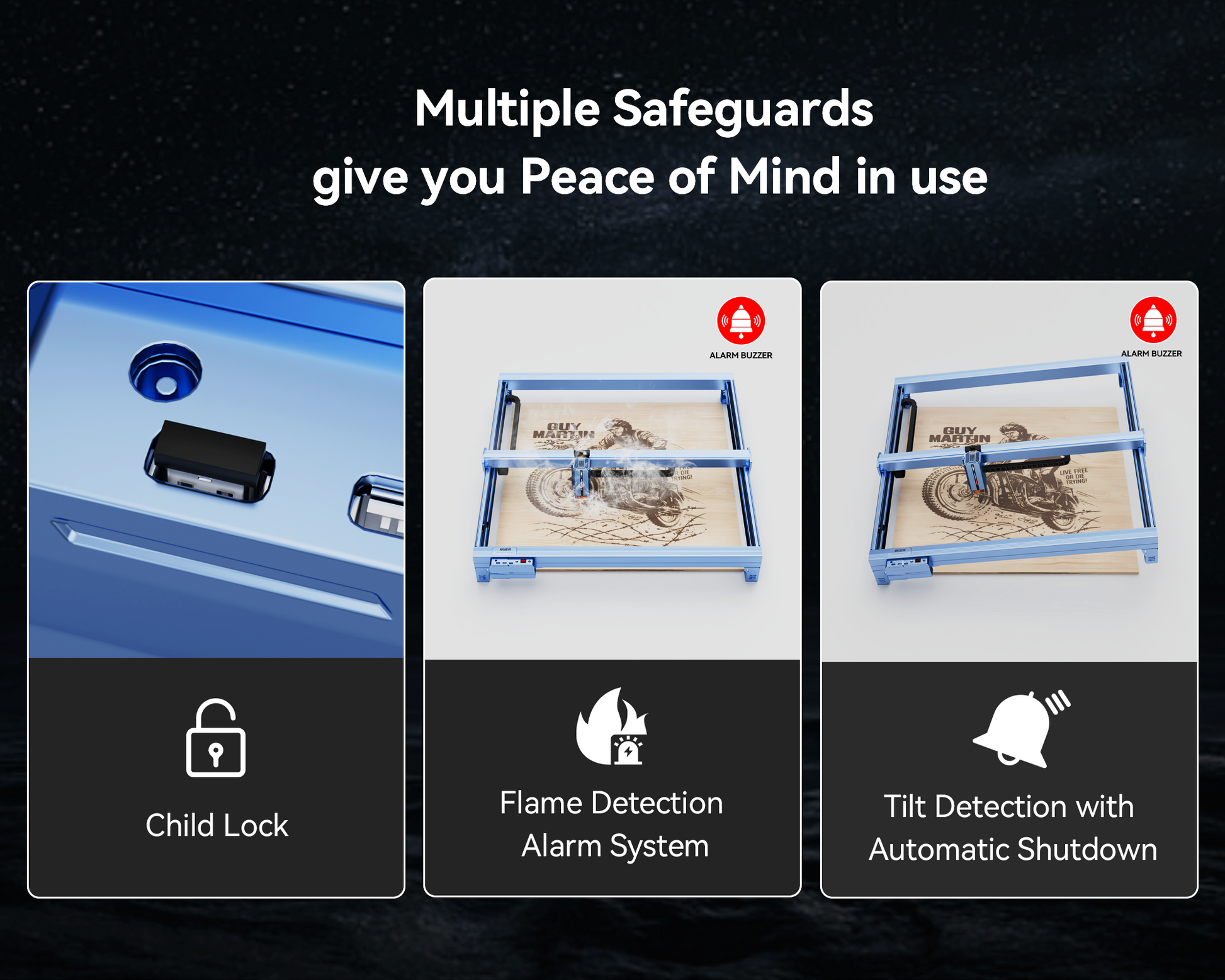

8. Comprehensive Safety: Child lock, flame detection, tilt shutdown, and CE/FCC/RoHS/FDA certifications

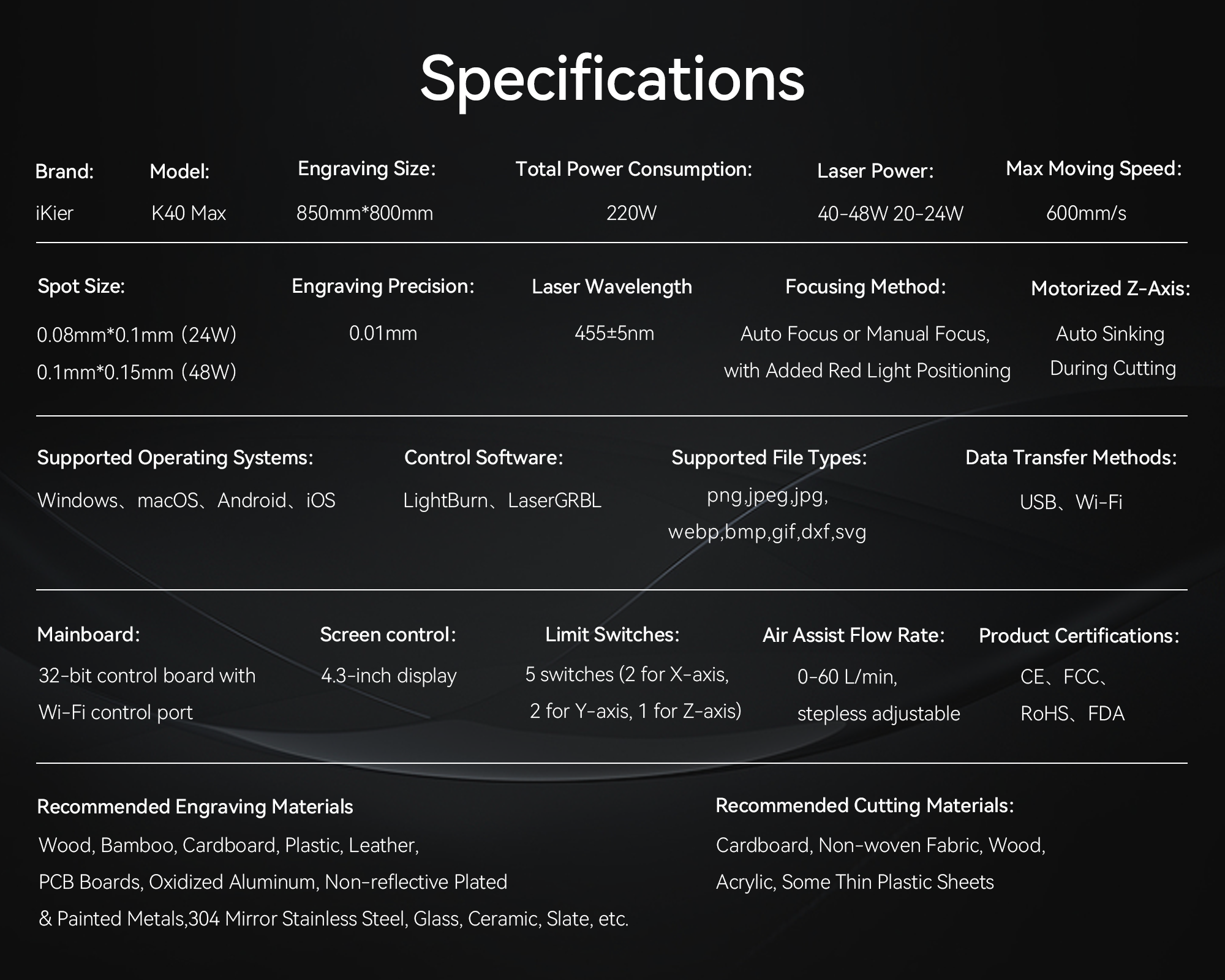

Specifications:
| K40 MAX Laser Engraver Specifications | |
|---|---|
| Brand | iKier |
| Model | K40 Max |

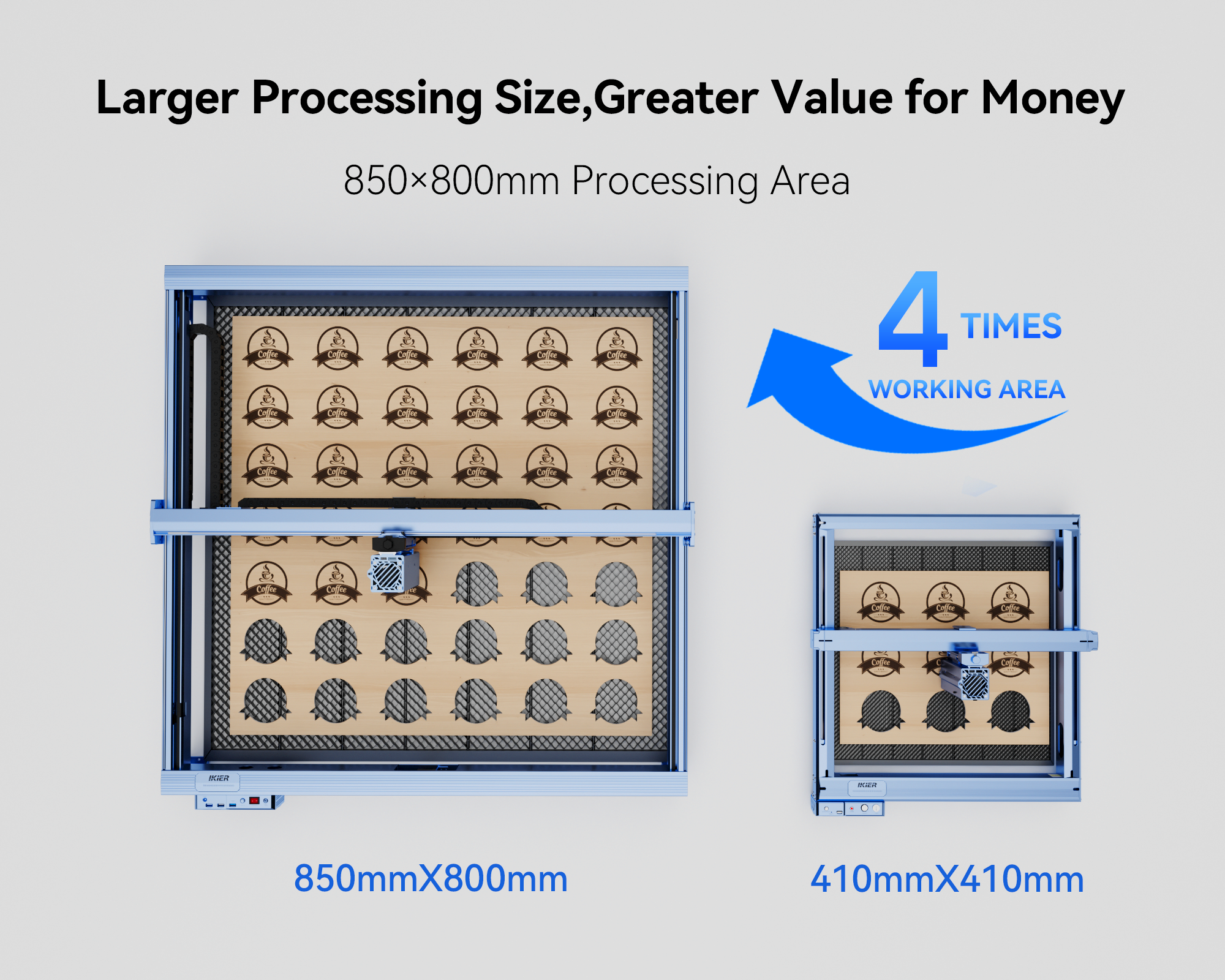

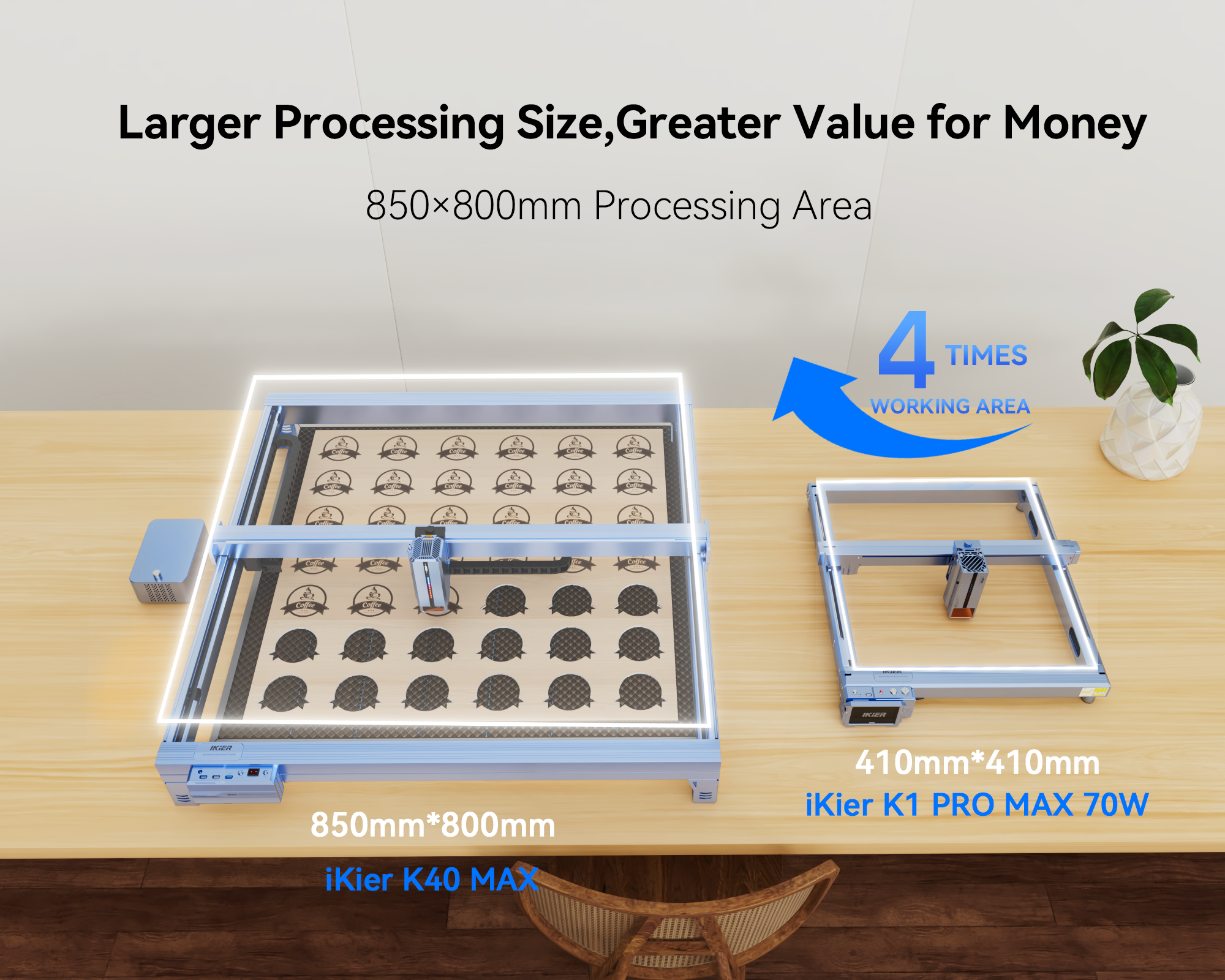

| Engraving Size | 850mm × 800mm |
| Machine Size | 1125mm × 1090mm |
| Total Power Consumption | 220W |
| Laser Power | 40–48W (cutting) / 20–24W (engraving) |

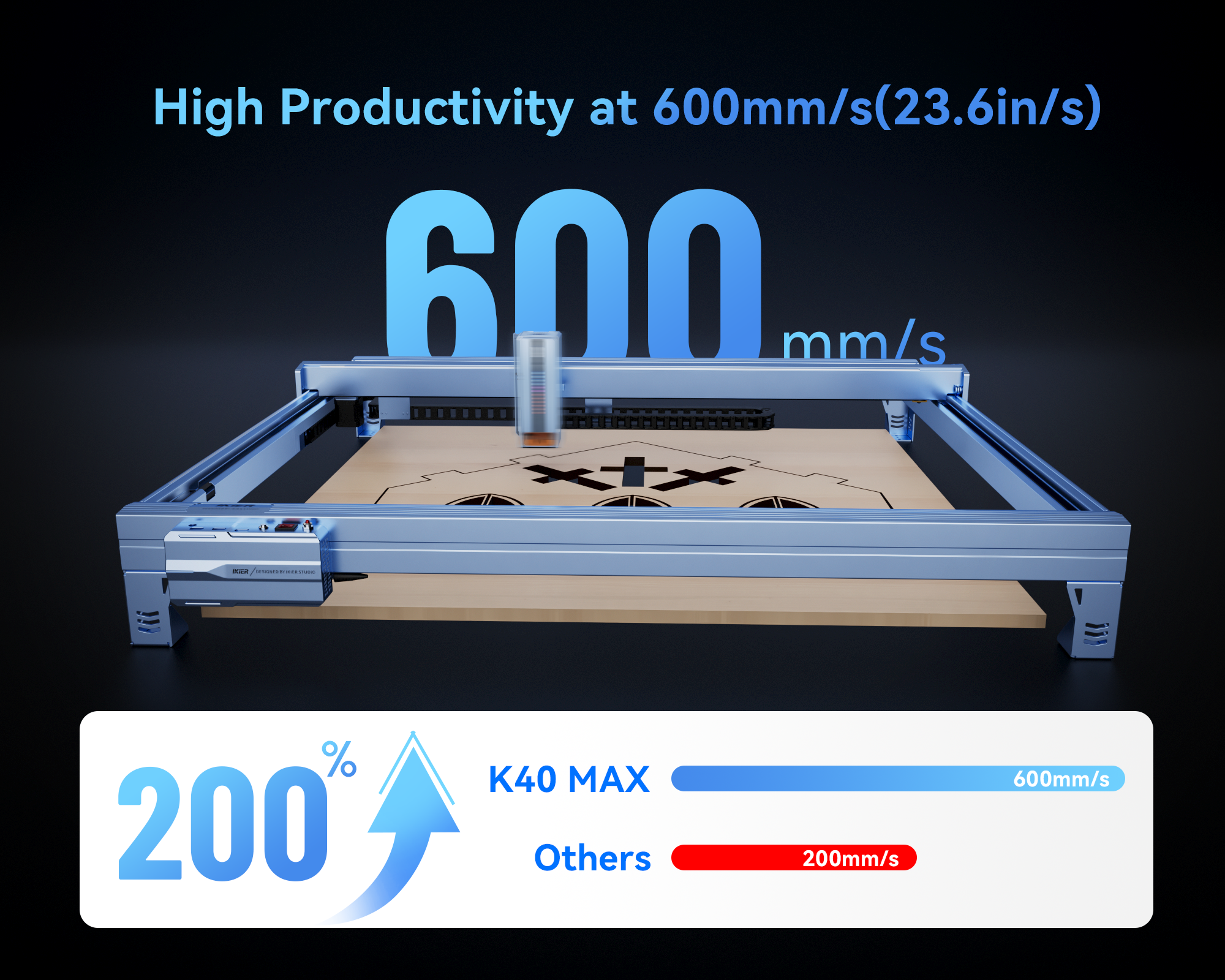

| Max Moving Speed | 600mm/s |
| Spot Size | 0.08 × 0.1 mm (24W); 0.1 × 0.15 mm (48W) |
| Engraving Precision | 0.01mm |
| Laser Wavelength | 455±5nm |
| Focusing Method | Auto Focus or Manual Focus, with Added Red Light Positioning |
| Motorized Z-Axis | Auto Sinking During Cutting |
| Supported OS | Windows, macOS, Android, iOS |
| Control Software | LightBurn, LaserGRBL |
| Supported File Types | png, jpeg, jpg, webp, bmp, gif, dxf, svg |
| Data Transfer | USB, Wi-Fi |
| Mainboard | 32-bit control board with Wi-Fi control port |
| Screen Control | 4.3-inch display |
| Limit Switches | 5 switches (2 for X-axis, 2 for Y-axis, 1 for Z-axis) |
| Air Assist Flow Rate | 0-60 L/min, stepless adjustable |
| Certifications | CE, FCC, RoHS, FDA |
| Power Supply | 100–240V AC → 12V 7.5A |
| Recommended Engraving Materials | Wood, Bamboo, Cardboard, Plastic, Leather, PCB Boards, Oxidized Aluminum, Non-reflective Plated & Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramic, Slate |
| Recommended Cutting Materials | Cardboard, Non-woven Fabric, Wood, Non-transparent Acrylic, Some Thin Plastic Sheets |

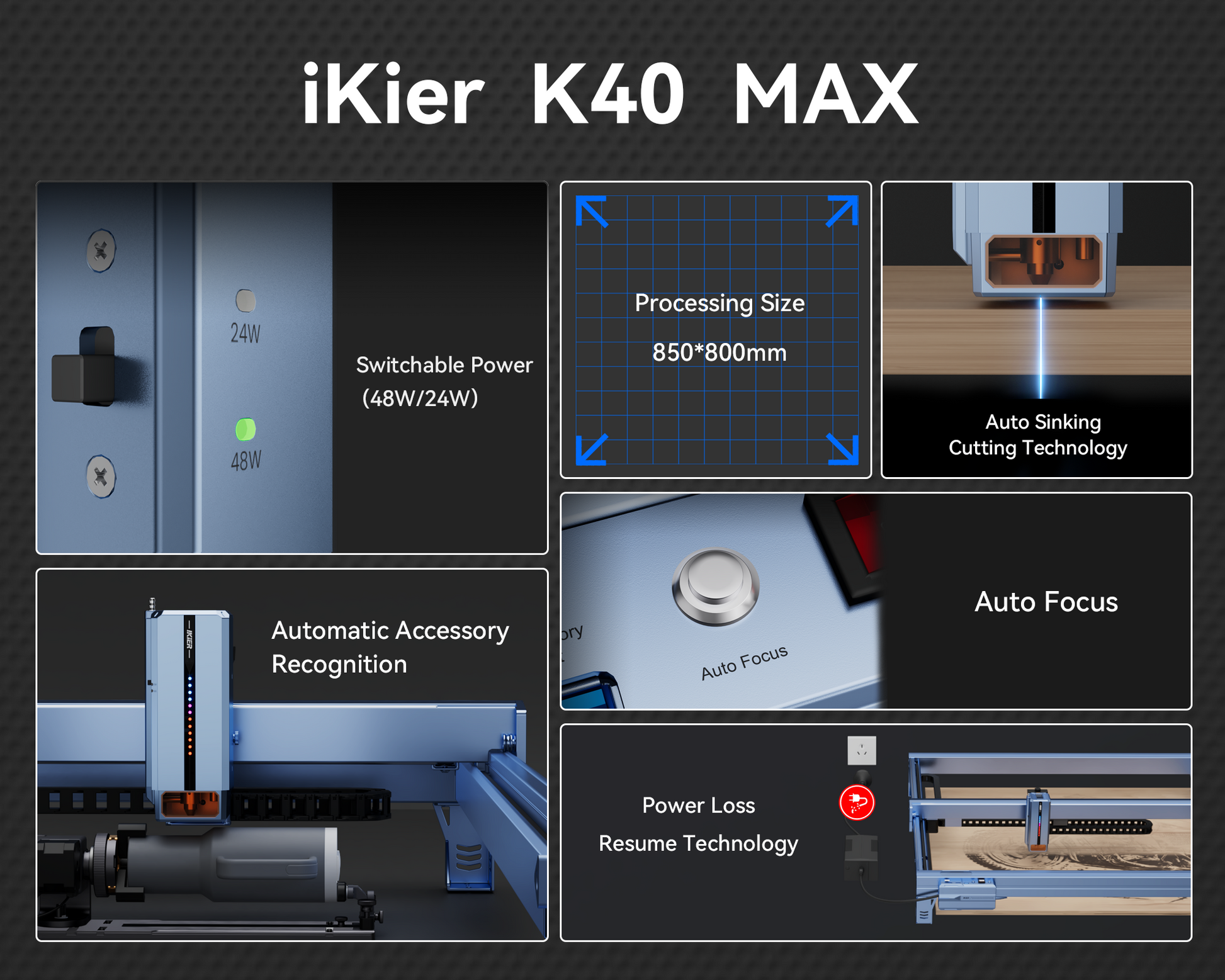

🚀 Why Choose iKier K40 Max?
Smarter Power • Stronger Frame • Safer Operation
| Machine | 🟦 iKier K40 MAX | *** S40 MAX |
|---|---|---|
| Laser Power | 48W for Cutting & 24W for Engraving (One-click Switching) | 48W Fixed |
| Frame | All-Metal Large Frame — Extra Stability | Standard Frame |
| Working Area | 850 × 800 mm | 830 × 800 mm |
| Working Speed | 400 mm/s (Guaranteed Accuracy at High Speed) | 600 mm/s |
| Spot Size | ✅ 0.08 × 0.1 mm (24W); 0.1 × 0.15 mm (48W) | 0.15 × 0.12 mm |
| Air Assist Flow | ✅ 0–60 L/min Adjustable | ❌ 50 L/min (Fixed) |
| Dual-axis Linear Guide | ✅ Yes | ✅ Yes |
| Focusing Method | Auto / Manual + Red Light Positioning | Auto + Manual |
| Motorized Z-Axis | ✅ Auto-Sinking During Cutting | ❌ No |

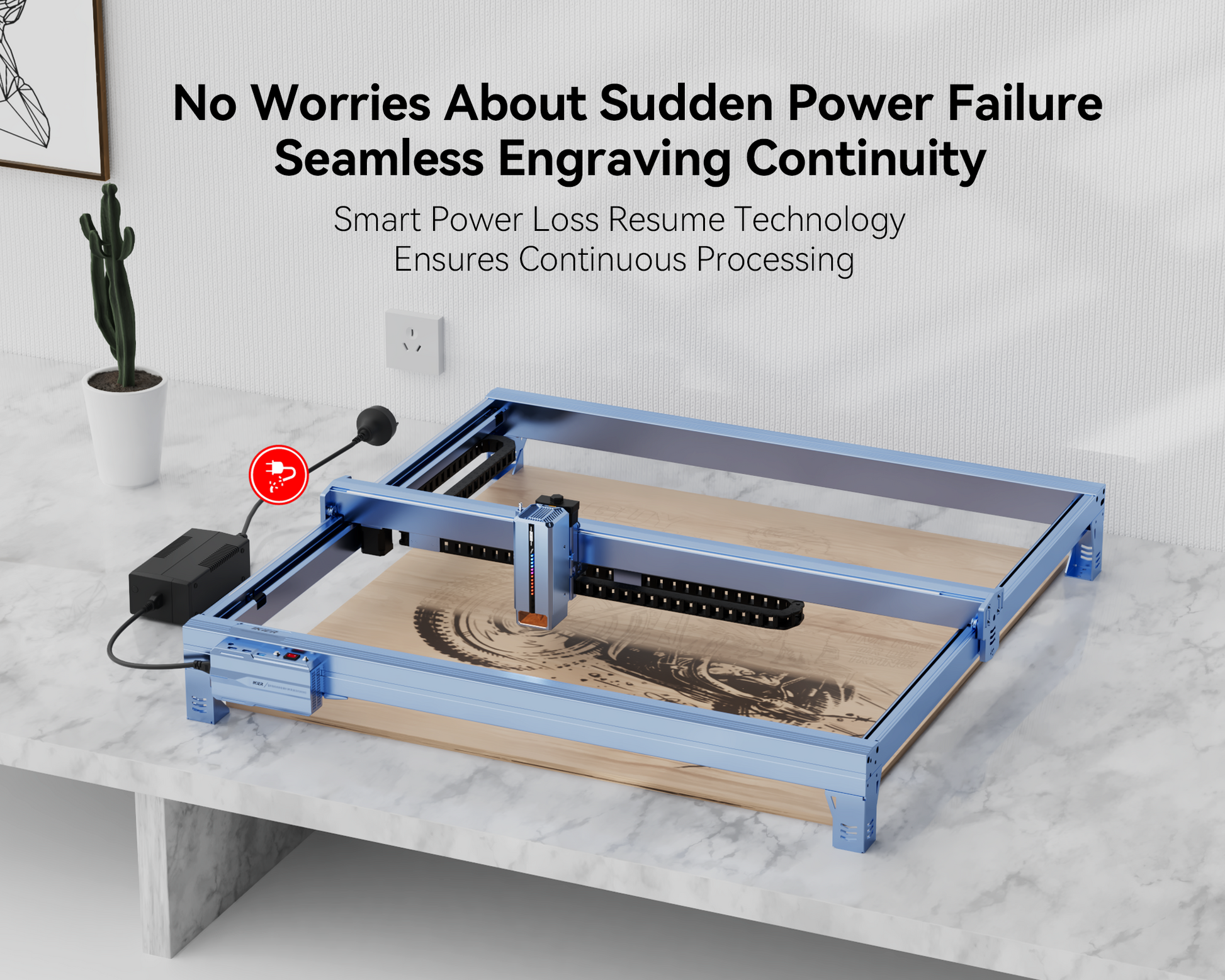

| Power Loss Resume Technology | ✅ Yes | ❌ No |
| AI Image Generation | ✅ Yes | ❌ No |

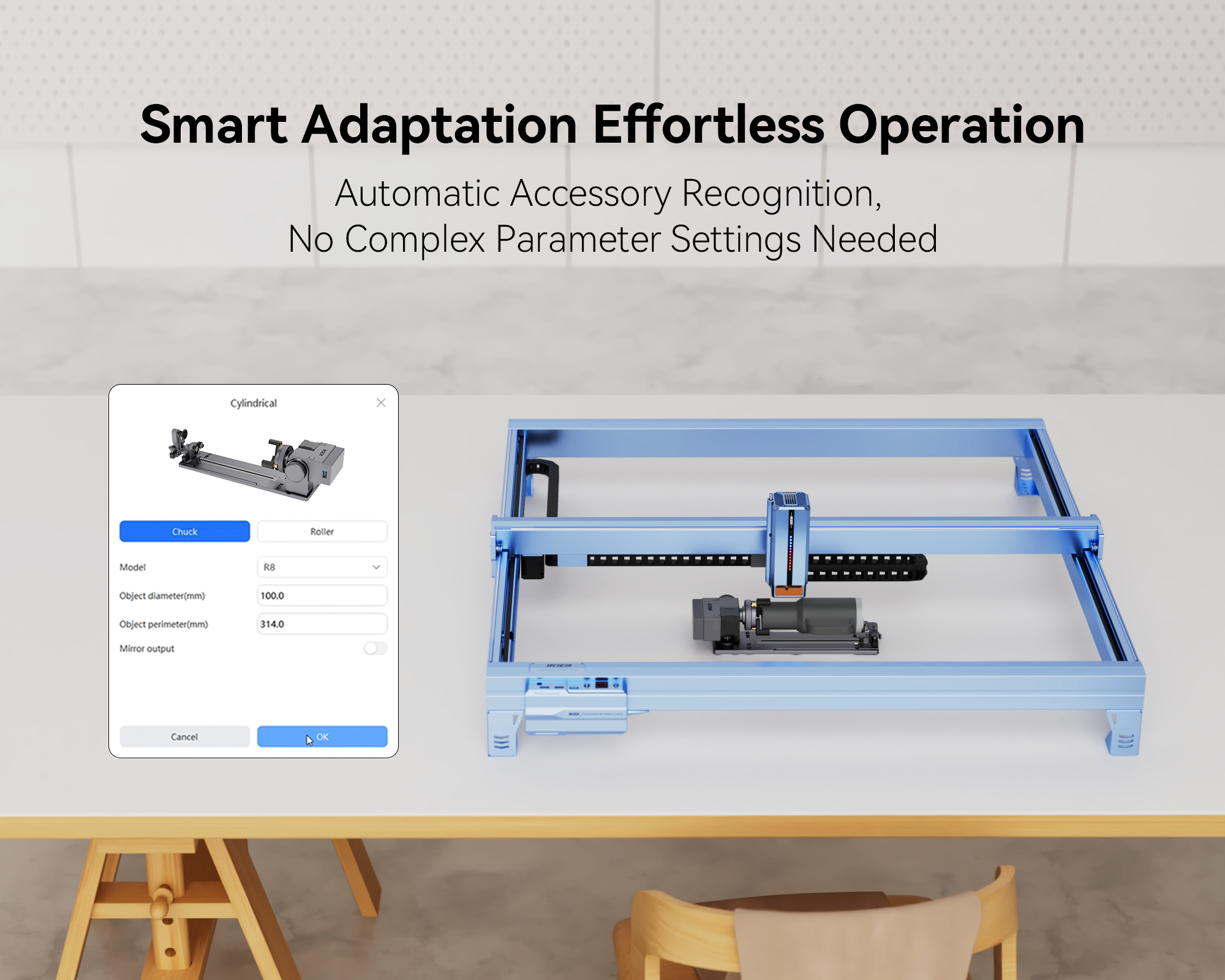

| Accessory Recognition | ✅ Yes | ❌ No |
Safety Precautions:
1. Always install protective covers and wear laser safety goggles before operation
2. Never look directly at or touch the laser path to prevent burns
3. Strictly prohibited for children under 14; ages 14+ require adult supervision
4. Avoid processing mirror-reflective materials to prevent laser reflection injuries
5. Keep the device stable to prevent mechanical deformation from impacts or compression
