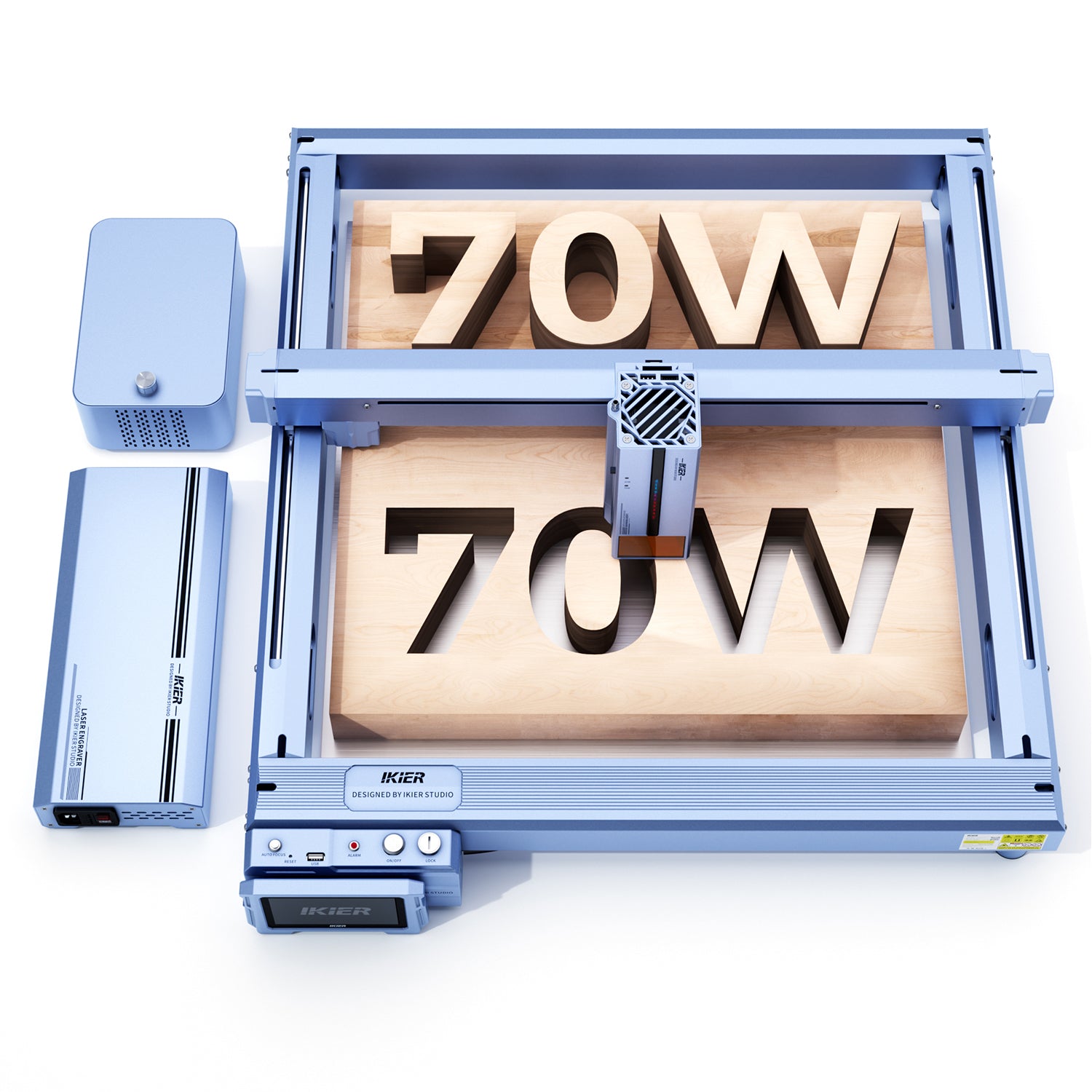

iKier K1 Pro Max 70W: Power Switching Diode Laser Cutter
➤ The World's First 70W Desktop Diode Laser Cutter
➤ Cutting ability increased by 50%
➤ One-key Auto Focus
➤ Engraving Speed: Super Fast 900mm/s
➤ Dual Gear Laser Power output 70W / 35W
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days -
International Express:
3-5 Working Days -
2% Rebate on Orders:
Get 2% of Your Order Back
Note: Customs duties will be incurred if your order is shipped from China.
Pre-sales: +86 159 8667 9892; +86 137 9752 3312 (Whatsapp)
After-sales: support@ikier.com

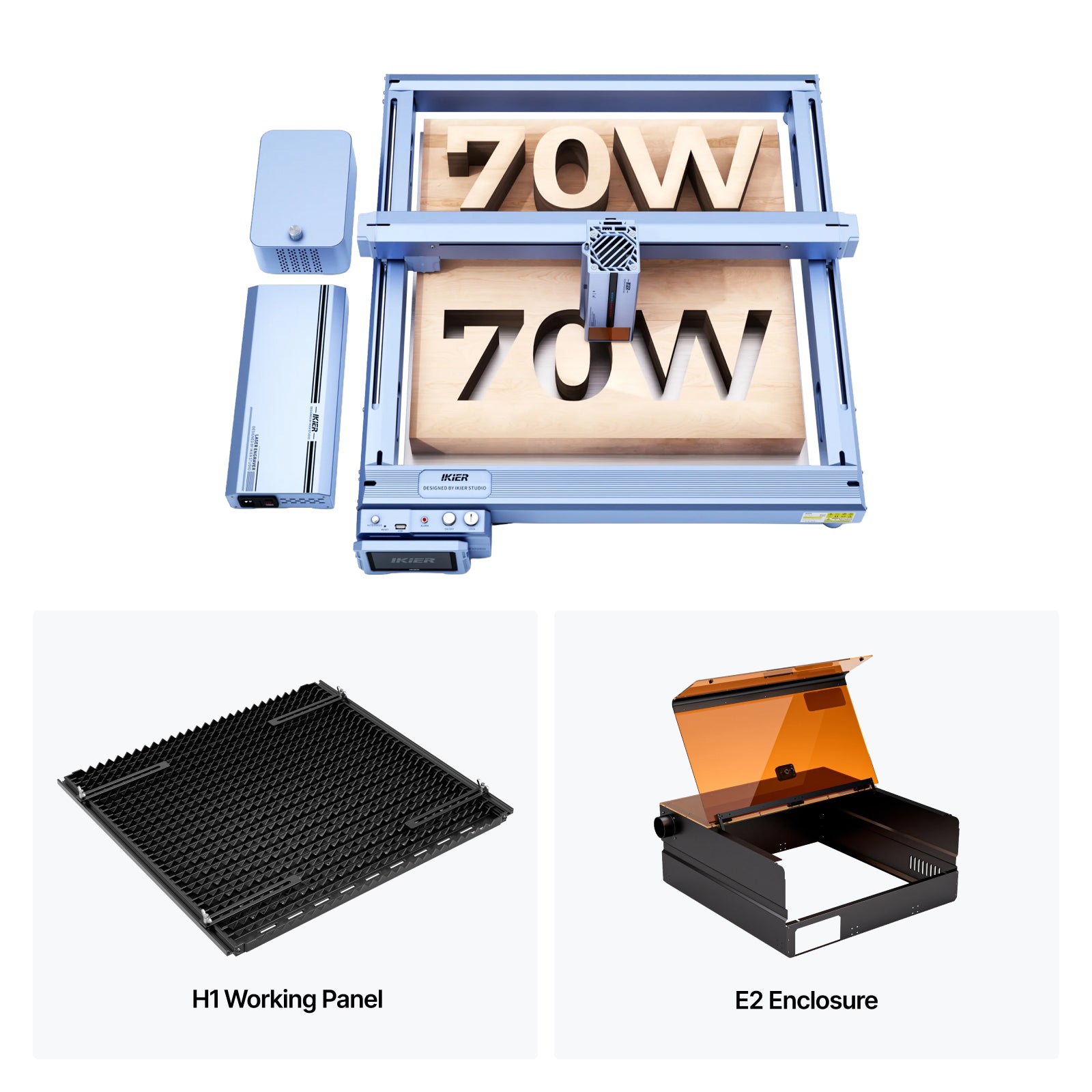

Frequently Bought Together
Laser Engraving Review and Expert Analysis
70W Flagship Diode Laser Cutter: Accomplishing the Impossible
The Most Intelligent Laser Engraving Machine: As the world's most intelligent laser engraving machine, IKIER K1 leads with features like power-off resume engraving, one-click autofocus, automatic sinking cutting, automatic air assistance, flame detection, and infrared positioning. It achieves an ultra-high-speed operation of 900mm/s.
Features:
1. Beastly Performance: Equipped with the unique highest power laser on the market, the laser's actual optical power can reach 70-77W, making it more suitable for high-speed processing and deep cutting. It supports a variety of materials, enhancing work efficiency.
2. Resume Engraving: The world's first laser engraving machine with the capability to resume engraving after a power outage, preventing work termination due to unforeseen circumstances, thus significantly saving materials and work time.
3. Intelligent Z-Axis: In addition to the X and Y axes, the IKIER laser engraving machine features an exclusive intelligent Z-axis, allowing both electric and manual adjustment. Three-axis control makes it more intelligent and user-friendly.
4. One-Click High-Speed Autofocus: With the assistance of the intelligent Z-axis, it achieves electric autofocus, making laser engraving more precise and simple. The laser automatically focuses with just a physical button press, completing the process in only 8 seconds.
5. Sinking Cutting: Benefit with IKIER's self-developed intelligent motherboard and optimized laser working algorithm, it can control the automatic descent of the laser, reducing the focal length. With the same power laser, it can increase the maximum cutting depth by 30-50% (performance varies with different materials).
6. Super-Fast Working Speed: The machine adopts a motion structure of optical axis and linear guide, enabling ultra-high-speed and high-precision operation at 900mm/s. The engraving accuracy can reach 0.01mm at the maximum speed, greatly improving work efficiency.
7. Precision in Cutting: The IKIER K1 PRO MAX 70W utilizes 14*6W lasers to achieve a high-power laser of 70-77W. Its cutting capability is 90-100% higher than existing 40W machines in the market, able to cut through 25mm plywood in a single pass, equivalent to the cutting capacity of 120-150W CO2 lasers.
8. Upgraded Compression spot Coupling Technology: The laser focus area is reduced to 0.15*0.2mm with ultra-fine focus. High-density laser can cut 30mm paulownia wood, 18mm black acrylic, 12mm MDF, 30mm pine board and even 0.05mm stainless steel in a single pass. It allows high-speed engraving directly on materials like mirror-finish stainless steel metal, ceramics, black acrylic, etc.
9. Newly Robust Structure: The machine features a sturdy structure with an optical axis and linear guide motion structure, modular design, and can be quickly installed in 15 minutes.
10. 4.3-Inch Intelligent Offline Controller: Equipped with a 4.3-inch LCD touchscreen intelligent controller, providing a larger display and more control functions. It allows the machine to work offline, freeing it from PC limitations, making engraving more convenient.
11. Safety Protection: The IKIER cares about your work safety with features such as a physical switch key, sensitive gyroscope displacement detection, flame detection, and other safety protection devices.
12. Intelligent Air Assistance and heat dissipation: The IKIER K1 intelligently controls the air assistance and laser cooler, automatically switching and adjusting their power only during operation so now you no longer need to manually adjust them. This also saves energy and provides a quiet working environment.
13. Built-in Air Assistance: The IKIER includes built-in air assistance accessories with a dual-layer wind guide design, always cleaning up the air vents and ensuring continuous airflow, thus preventing blockage after long-term use.
14. Laser LED Energy Indicator: The IKIER laser is equipped with an LED energy indicator, providing a visual representation of the laser's output power at all times.
Tech Specs:
Brand: iKier
Model: K1 Pro Max 70W
Engraving Size: 410mm*410mm
Electric Power: 360W
Laser Power: 70-77W, 35-39W
Max. movement speed: 900mm/s
Spot Size: 0.15mm*0.2mm (70W) 0.1mm*0.15mm (35W)
Engraving Precision: 0.01mm Engraving Accuracy
Laser Wave: 455±5nm
Focusing method: Autofocus or Manual, and add Infrared Positioning
Advanced Z-Axis: Automatic Sinking During Cutting
Operating Systems: Windows, macOS, Android, iOS
Control Software: LightBurn, LaserGRBL
File Types: SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Connecting Interfaces: USB, Wi-Fi, TF Card
Motherboard: 32-Bit Control Board With Wifi
Control Terminal: 4.3 inches
Limit Switches: 5 (X-axis 2, Y-axis 2, Z-axis 1)
Air Assistance Flow: 0-60 L/min infinitely adjustable
Certification: CE, FCC, RoHS, FDA
Engraving Materials: Wood, Bamboo, Cardboard, Plastic, Leather, PCB board, Oxidized aluminum, Non-reflective electroplating and painted metal, 304 mirror stainless steel, Glass, Ceramics, Cotton, Slate and so on.
Cutting Materials: Cardboard, Non-woven fabrics, Wood, Acrylic, Some thin plastic sheets, Sponges
Package:
1* iKier K1 Pro Max 70W machine
More Details:
Specification
Brand
iKier
Model
K1 Pro Max 70W Combo
Engraving Size
410mm*410mm
Electric Power
360W
Laser Power
70-77W, 35-39W
Max. movement speed
900mm/s
Spot Size
0.15mm*0.2mm (70W) 0.1mm*0.15mm (35W)
Engraving Precision
0.01mm Engraving Accuracy
Laser Wave
455±5nm
Focusing method
Autofocus or Manual, and add Infrared Positioning
Advanced Z-Axis
Automatic Sinking During Cutting
Operating Systems
Windows, macOS, Android, iOS
Control Software
LightBurn, LaserGRBL
File Types
SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Connecting Interfaces
USB, Wi-Fi, TF Card
Motherboard
32-Bit Control Board With Wifi
Control Terminal
4.3 inches
Certification
CE, FCC, RoHS, FDA
Download
Parameter Table of K1 PRO MAX 70W Laser Module for LightBurn Software Standard Mode.pdf
Parameter Table of K1 PRO MAX 70W Laser Module for LaserGRBL Software Standard Mode.pdf
Parameter Table of K1 PRO MAX 70W Laser Module for LightBurn Software Fast mode.pdf
Parameter Table of K1 PRO MAX 70W Laser Module for LaserGRBL Software Fast mode.pdf
