iKier K1 Ultra: 36W Laser Engraving and Cutting Machine + E2 Enclosure + H1 Matrix Detachable Working Panel Set(460*425mm)
➤ Engraving speed: Super Fast 800mm/s
➤ Motorized Z-axis and Smart Auto Focus
➤ Cut 30mm wood and 15mm acrylic by one-Pass
➤ Double compression spot laser power is 33~36W
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days -
International Express:
3-5 Working Days -
Liner Logistic:
7-10 Working Days
Note: Customs duties will be incurred if your order is shipped from China.
Pre-sales: +86 159 8667 9892; +86 137 9752 3312 (Whatsapp)
After-sales: support@ikier.com
Laser Engraving Review and Expert Analysis

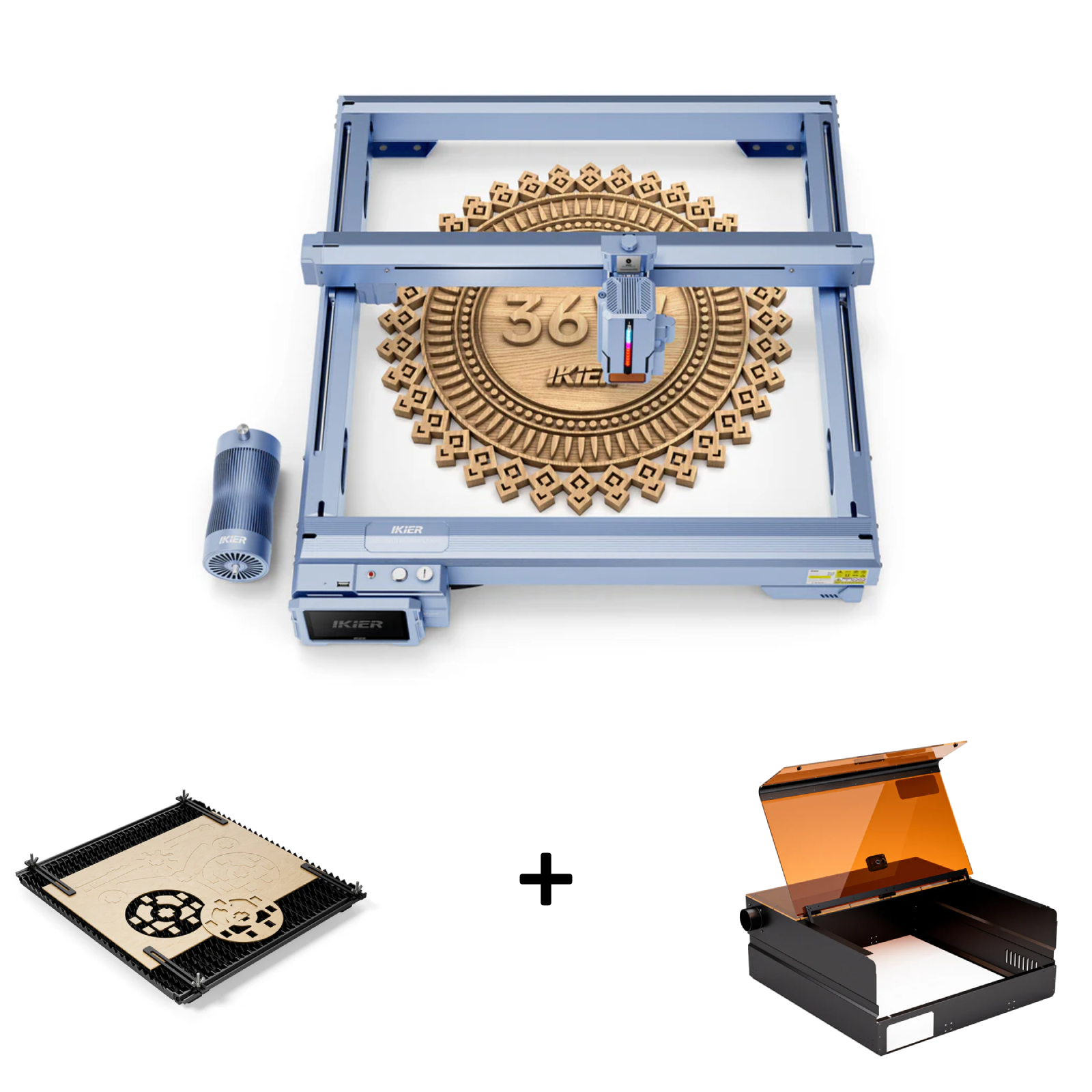

This product link is for a combination of SKUs: iKier K1 Ultra 36W Laser Engraving and Cutting Machine + E2 Enclosure + H1 Matrix Detachable Working Panel Set(460*425mm)
iKier Black Technologies:
- Motorized Z-axis
- Auto Focus
- Auto Sinking Cutting
- Resume Engraving
- Engraving Speed 800mm/s
Main Features:
Engraving speed up to 800mm/s: The engraving speed of IKIER K1 can reach up to 800mm/s, which is 4 times faster than other machines in the industry. This speed has already reached the highest level in the current industry, maximizing your productivity to the fullest.
Motorized Z-axis: The days of manual focusing are over. IKIER’s intelligent Z-axis helps you achieve autofocus by automatically measuring the distance to the object and automatically adjusting the focus.
Automatic Sinking During Cutting: IKIER’s automatic sinking cutting technology can increase the maximum cutting depth by 25% compared to machines with the same power, while also providing better cutting results.
Resume Engraving: IKIER has achieved a world-first power-off resume engraving, which prevents work failures caused by unexpected power outages and eliminates material waste.
Automatic Air Assist: When switching from engraving to cutting, the air assist device will automatically turn on to ensure a smooth process and help bring your creative ideas to life.
Infrared Positioning: The infrared positioning function of a laser engraving machine uses infrared rays to accurately locate the position of the material to be engraved. It projects a visible light onto the surface of the material, allowing for precise alignment of the engraving area and the design.
Flame Detection Systems: In the event of a flame detection, the machine will sound an alarm and send a notification to a linked mobile device, while the laser module will automatically return to its original position.
Child Safety Lock: The child safety lock prevents accidental activation of the machine, ensuring the safety of household members.
Tech Specs:
Brand: iKier
Model: K1 Ultra 36W
Engraving Size: 410mm*410mm
Electric Power: 180W
Laser Power: 33-36W
Spot Size: 0.08mm*0.1mm
Engraving Precision: 0.01mm Engraving Accuracy
Laser Focal Length: 40mm
Laser Wave: 455±5nm
Focusing method: Autofocus or Manual, and add Infrared Positioning
Advanced Z-Axis: Automatic Sinking During Cutting
Operating Systems: Windows, macOS, Android, iOS
Control Software: LightBurn, LaserGRBL
File Types: SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Connecting Interfaces: USB, Wi-Fi, TF Card
Motherboard: 32-Bit Control Board With Wifi
Control Terminal: 4.3 inches
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC24V, 5A
Machine Net Weight: 12kg
Packing Weight: 13kg
Equipment Size: 650mm*750mm*222mm
Packing Size: 780mm*500mm*153mm
Certification: CE, FCC, RoHS, FDA
More Details:
Specification
Brand
iKier
Model
K1 Ultra 36W
Engraving Size
410mm*410mm
Electric Power
180W
Laser Power
33-36W
Spot Size
0.08mm*0.1mm
Engraving Precision
0.01mm Engraving Accuracy
Laser Focal Length
40mm
Laser Wave
455±5nm
Focusing method
Autofocus or Manual, and add Infrared Positioning
Advanced Z-Axis
Automatic Sinking During Cutting
Operating Systems
Windows, macOS, Android, iOS
Control Software
LightBurn, LaserGRBL
File Types
SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Connecting Interfaces
USB, Wi-Fi, TF Card
Motherboard
32-Bit Control Board With Wifi
Control Terminal
4.3 inches
Input Voltage
AC100-240V, 50/60Hz
Output Voltage
DC24V, 5A
Machine Net Weight
12kg
Packing Weight
13kg
Equipment Size
650mm*750mm*222mm
Packing Size
780mm*500mm*153mm
Certification
CE, FCC, RoHS, FDA
Download
Parameter Table of 36W Laser Module for Light Burn Software Standard mode.pdf
Parameter Table of 36W Laser Module for Laser GRBL Software Standard mode.pdf
Parameter Table of 36W Laser Module for Laser GRBL Software Fast mode.pdf
Parameter Table of 36W Laser Module for Light Burn Software Fast mode.pdf
iKier-K1-Series-UserManual-Deutsch-Francais-Italiano-Espanol.pdf
