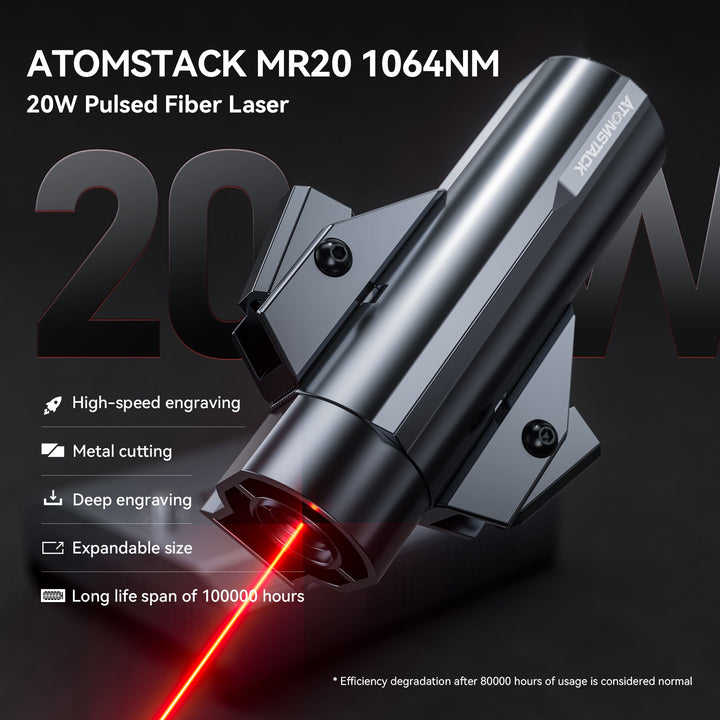

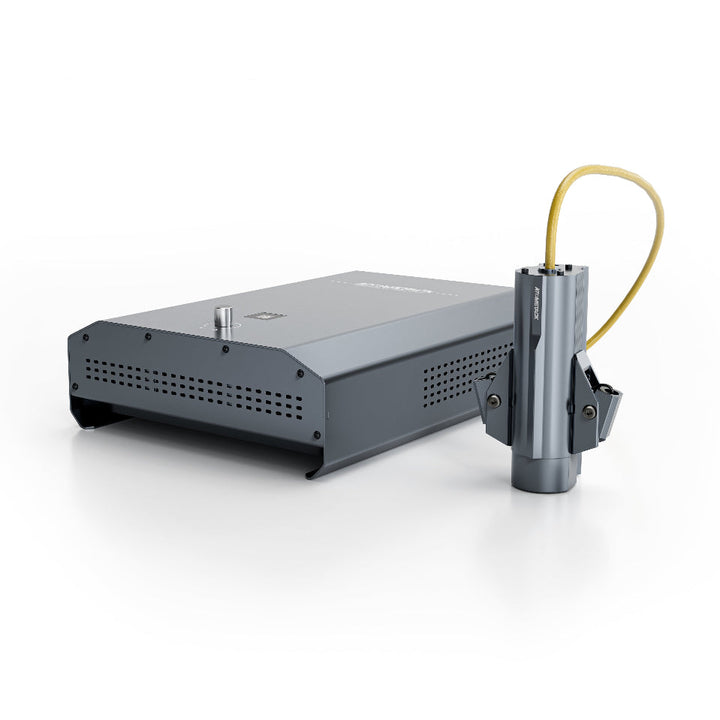

Atomstack MR20 1064nm 20W Pulsed Fiber Laser Module
Note: Atomstack/ iKier 1064nm 20W Fiber Laser Module is not compatible with iKier 70W.
✅ 20W Fiber Laser Power
✅ Cut 0.2mm aluminum cards by one-pass
✅ Relief engraving and Rust removal
✅ Adaptable to all Atomstack frame structure engraving machines
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days -
International Express:
3-5 Working Days -
Liner Logistic:
7-10 Working Days
Note: Customs duties will be incurred if your order is shipped from China.
Pre-sales: +86 159 8667 9892; +86 137 9752 3312 (Whatsapp)
After-sales: support@ikier.com
Laser Engraving Review and Expert Analysis

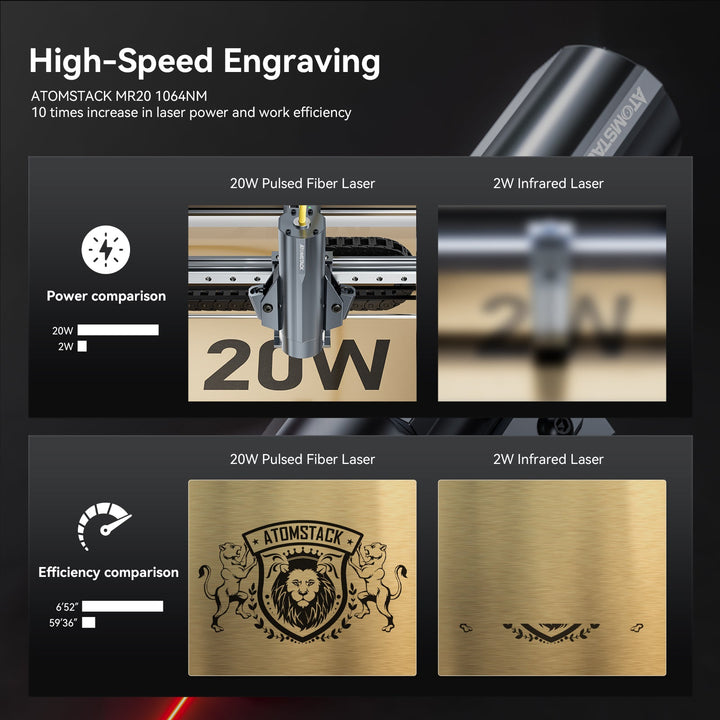

The world's first 20W high power 1064nm pulsed fibre laser engraver for use directly on frame laser engraving machines; professional-grade infrared laser module with up to 20W of optical power; fibre-optic conduction of energy with low loss; lightburn software support.
Main Features:
1, 20W Fiber Laser Power: The world's first 1064nm wavelength pulsed fibre-optic infrared laser module with optical power up to 20W, using Q-switched (photoelectric switch) main oscillator, high power fibre amplifier (MOPA) construction;
2, Multi-Material Application: MR20 fiber laser module can be applied to all daily metal (copper, iron, aluminium, zinc, silver, etc.) and plastic with high-speed fine engraving, as well as in black acrylic, leather, ceramics and rock engraving;

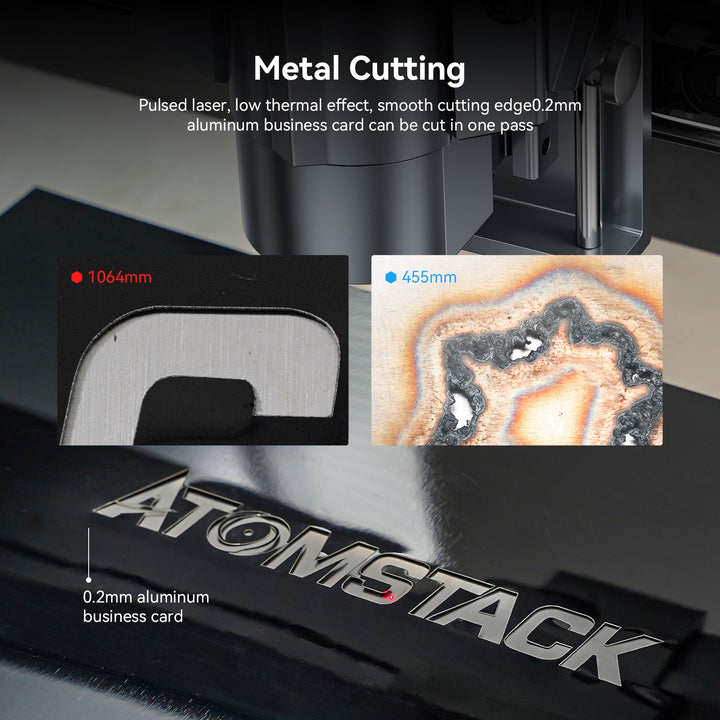

3, Metal Cutting:?20W laser output power and 0.03 * 0.06 ultra-fine spot allow MR20 to easily cut 0.2mm aluminium business card at a time, and cut 0.5mm brass sheet at multiple times;

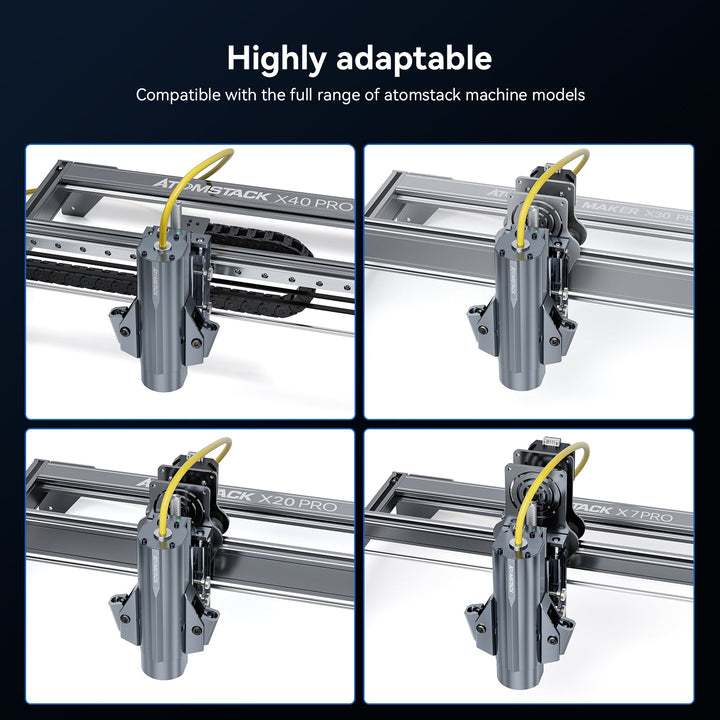

4, High Adaptability: MR20 module can be quickly installed and adapted to all Atomstack brand laser engraving machine frame;
5, Customised Lightburn Control Board: In order to use with the LightBurn software, MR20 customised infrared laser module dedicated control board, so that you can set the laser power through the LightBurn, and through the knob to adjust the pulse frequency, greatly improving the simplicity of work;

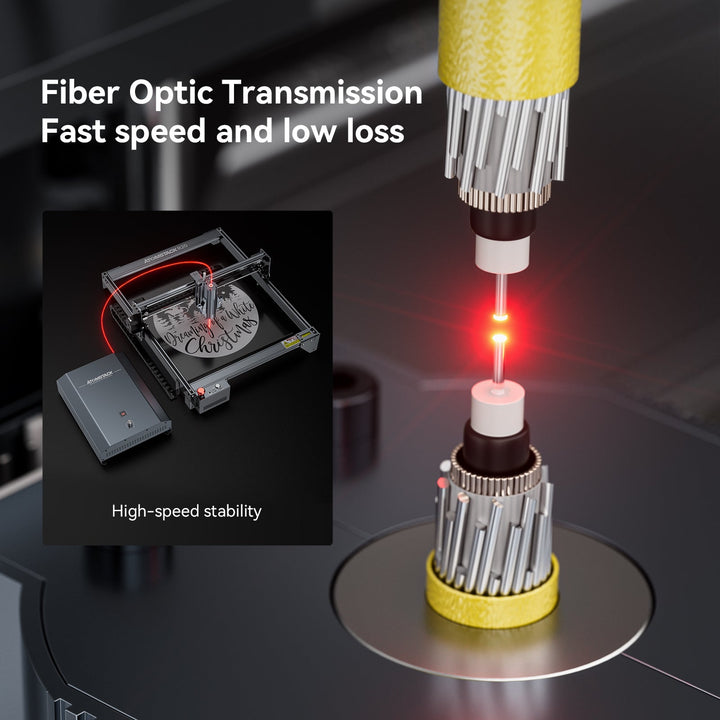

6, Fibre-Optic Conduction: The use of fibre-optic conduction for energy transfer can greatly improve the efficiency of energy transfer and reduce energy loss;

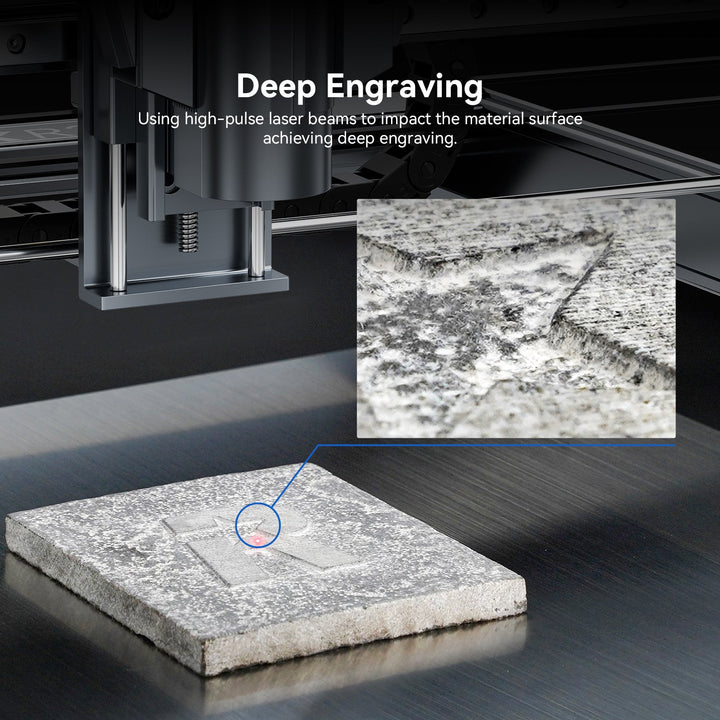

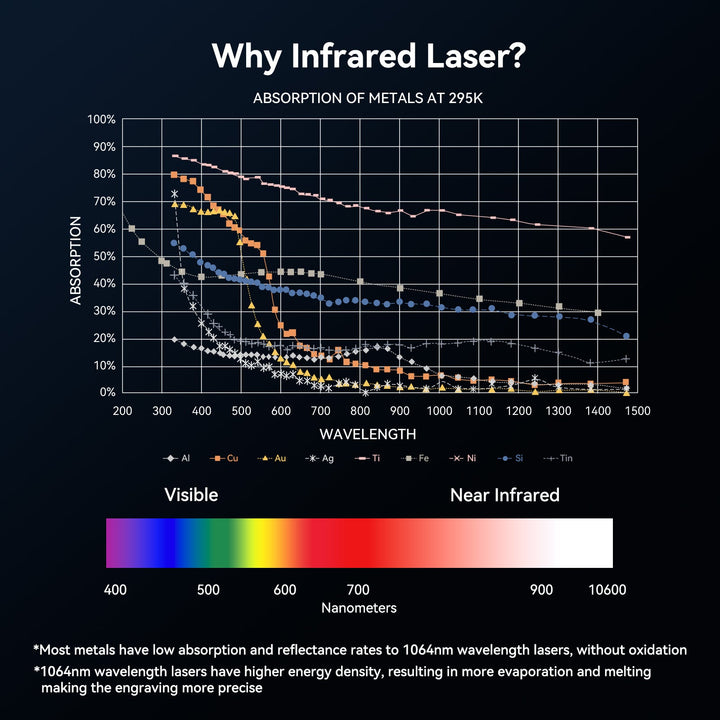

7, Deep Cutting: 1064nm infrared laser is ideally suitable for deep engraving in the neat slate plane to give a relief effect;
8, Easy Focus: Easy double red light focusing method, 30 seconds to easily get the best focus;
9, Laser Rust Removal: MR20 1064nm wavelength laser, very suitable for removing the rust layer on the surface of metals, can quickly laser remove rust on the metal;
Details:
Product Model: MR20
Engraving materials: PCB board, acrylic (non-transparent), aluminium oxide, plated and lacquered metal, 304mirror stainless steel, glass (non-transparent), ceramics, slate, leather;
Cutting material: thin stainless steel sheet, thin aluminium sheet; brass sheet;
Laser output optical power: 20W
Laser working power consumption: 90W
Laser wavelength: 1064nm

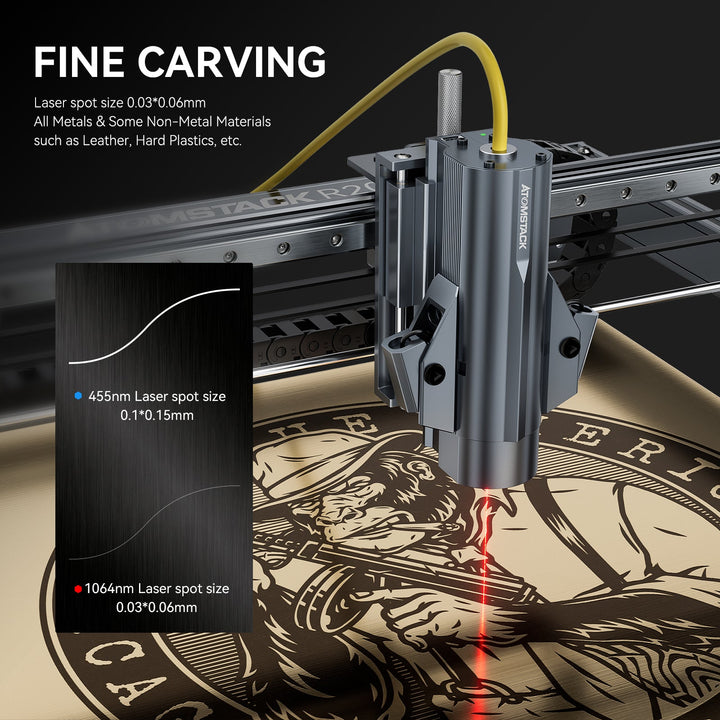

Spot size: 0.03*0.06mm
Maximum pulse energy: 0.7mj
Optical pulse width: 80-110ns
Repetition frequency: 30-60kHz
Peak power: 7kW
Power supply: 24V DC
Cautions:
When operating the laser engraving machine, please install the laser protection cover; goggles are required when it is not installed.
Do not touch the laser with your hands, or your hands may be burned.
Please avoid strong impact on the machine.
Children under 14 years are prohibited from using this product; adult supervision is required for children over 14 years.
Do not apply the laser directly to any specularly reflective objects, which may cause injury to the operator or burn the laser.
More Information:
Specification
Product Model
MR20
Engraving materials
PCB board, acrylic (non-transparent), aluminium oxide, plated and lacquered metal, 304mirror stainless steel, glass (non-transparent), ceramics, slate, leather;
Cutting material
thin stainless steel sheet, thin aluminium sheet; brass sheet;
Laser output optical power
20W
Laser working power consumption
90W
Laser wavelength
1064nm
Spot size
0.03*0.06mm
Maximum pulse energy
0.7mj
Optical pulse width
80-110ns
Repetition frequency
30-60kHz
Peak power
7kW
Power supply
24V DC
